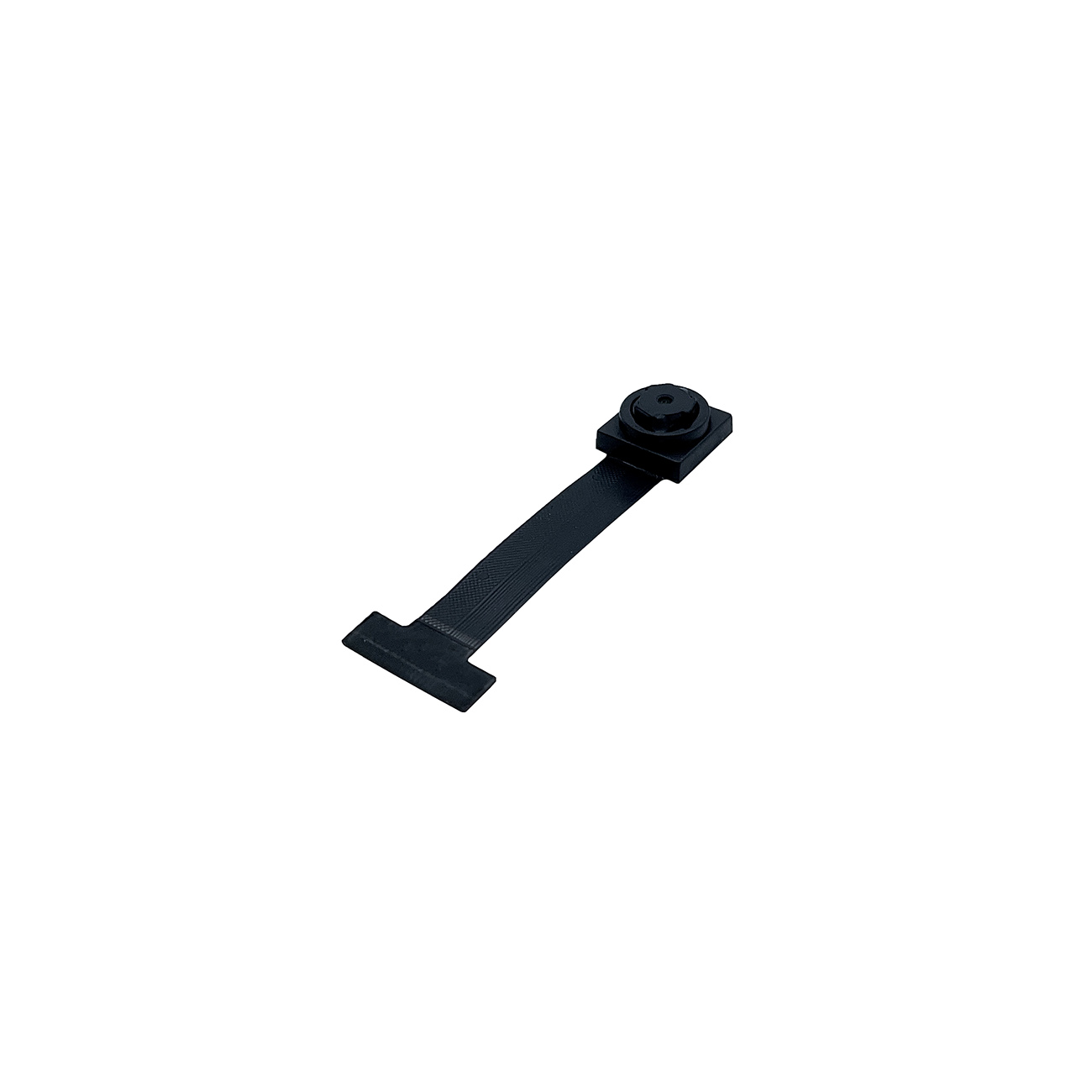

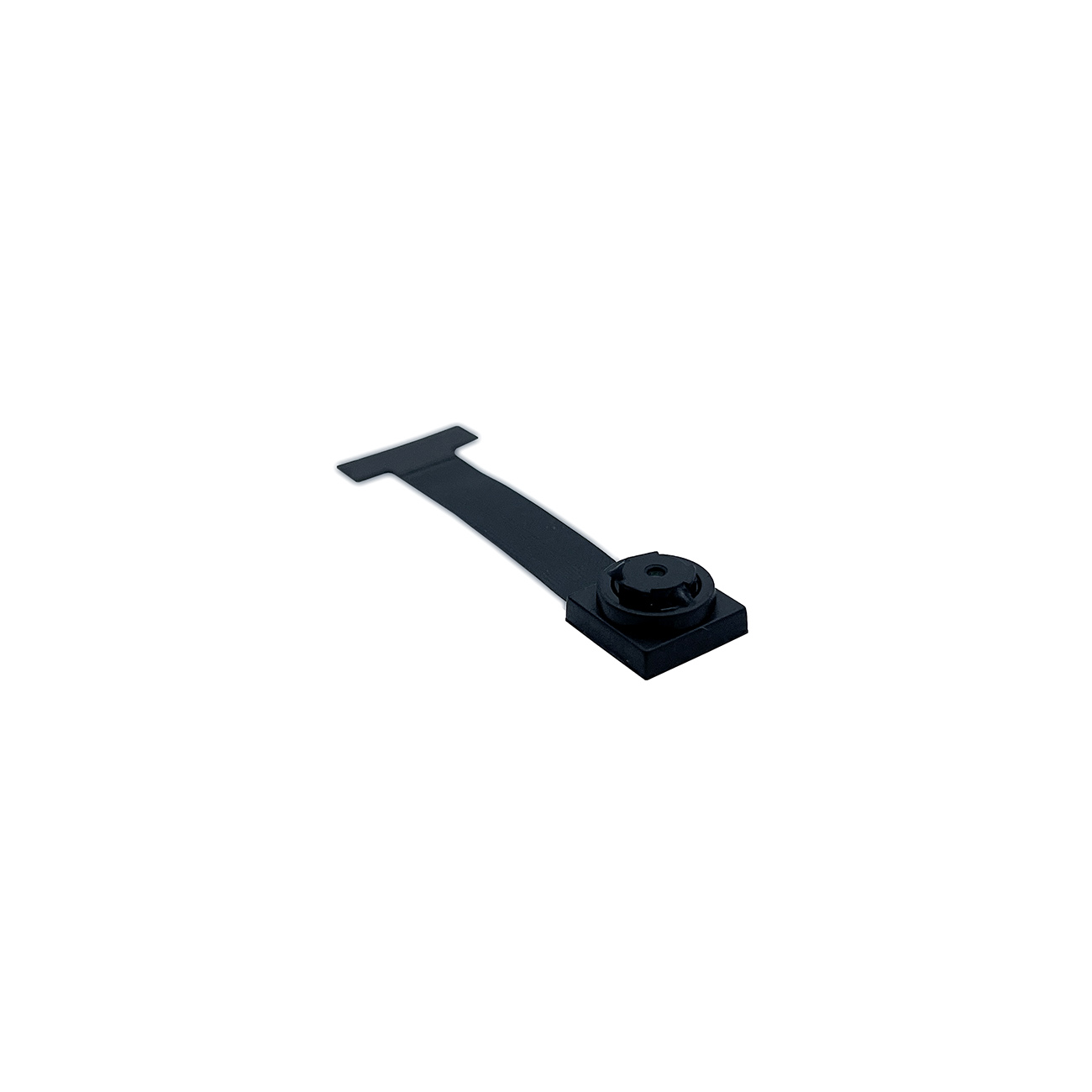

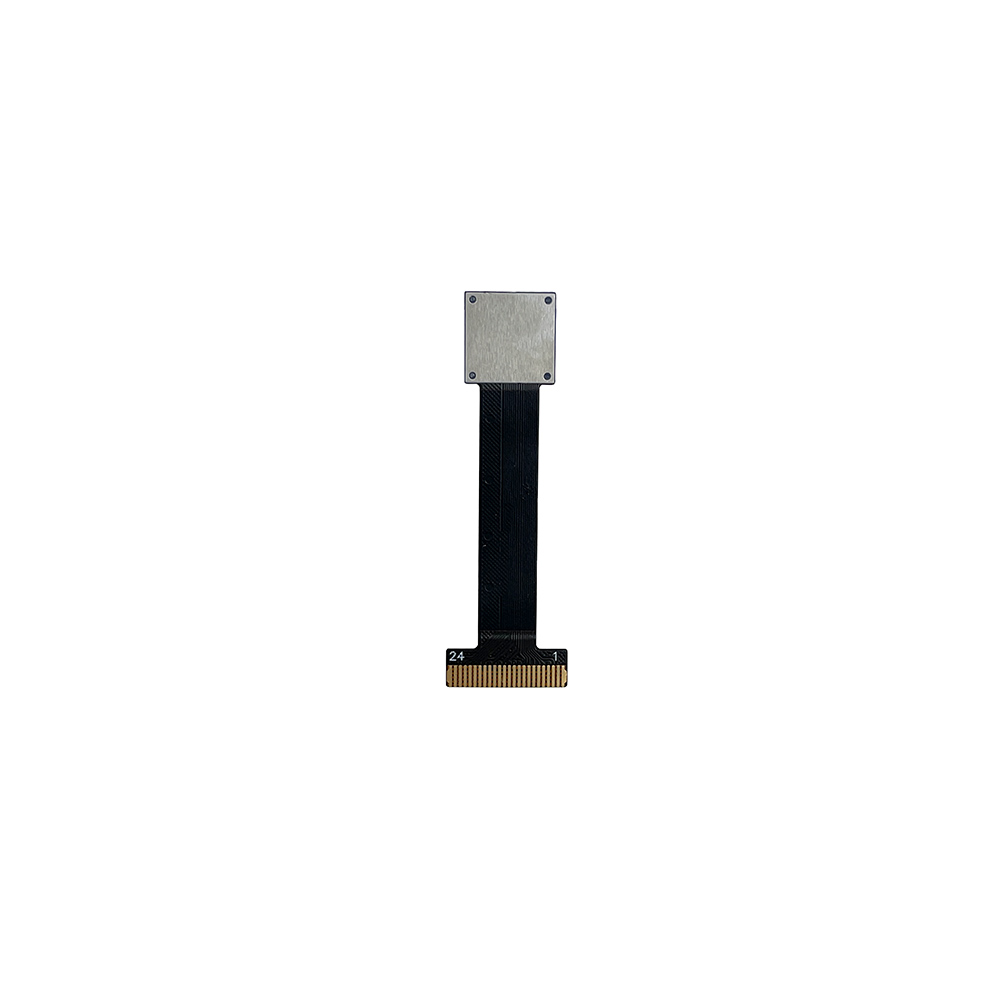

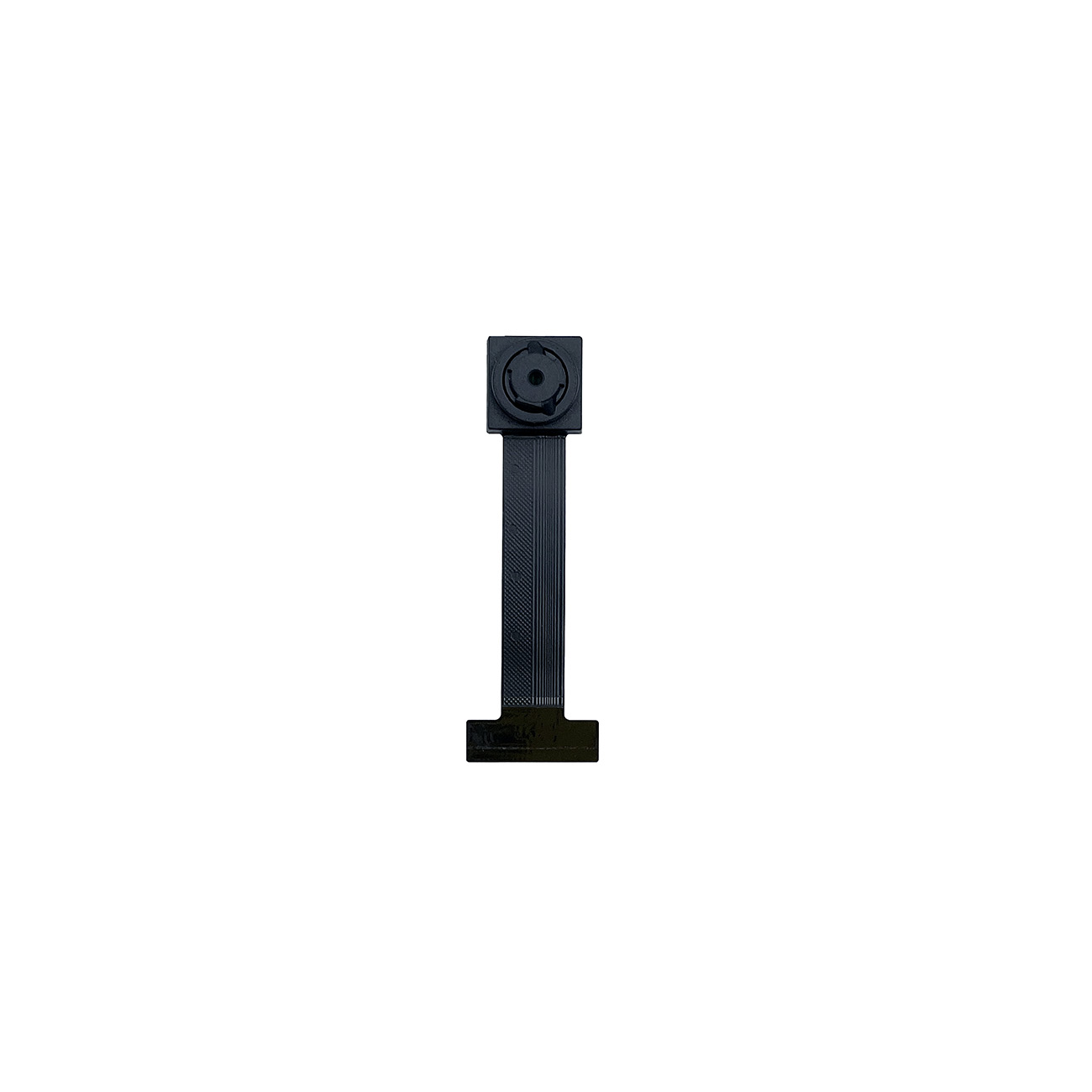

RH99141-A65F-55 is a 1MP high-performance DVP camera module that utilizes the Novatek NT99141 CMOS image sensor. It supports a maximum resolution of 1280 × 720 pixels at 30fps and 640 × 720 pixels at 60fps.
NT99141 DVP camera module offers smooth auto exposure (AE) and precise auto white balance (AWB) control under varying lighting conditions. Additionally, it supports noise reduction, defect correction, gamma and color saturation adjustment to capture finer and clearer images.
NT99141 sensor is one of the sensors supported by ESP32 development boards, making NT99141 camera module one of the best 1MP options for ESP32 users due to its high cost-performance ratio.
YXF has supplied and customized DVP camera module for hundreds of customers using ESP32 development boards, meeting their specific project needs. The NT99141 ESP32-Cam DVP camera module is widely used in security cameras, surveillance cameras, barcode scanning, QR code recognition, macro photography, industrial camera and more.
The NT99141 ESP32-Cam DVP camera module measures 8×49.7×4.72mm, with a diagonal field of view of 120º and a 650nm filter. Moreover, we can customise camera module Size, PIN Definition, FOV, Focal Length, Filter and so on according to your needs.
| Image Sensor | Novatek NT99141 |
| Sensor Size | 1/4inch CMOS Image Sensor |
| Maximum Resolution | 1284H × 724V |
| Pixel Size | 3.0μm × 3.0μm |
| Exposure System | Auto Exposure |
| Electronic Shutter | Electronic Rolling Shutter |
| Focus Type | Fixed Focus |
|
Output Format |
YCbCr (4:2:2), RGB565, RGB555, RGB444, Raw, CCIR656, and JPEG also. |
| ADC resolution | 10 bits ADC |
| Stable Image Temp | -20℃ ～ 70℃ |
| FOV | 55 degree |
| Focus | 2.8 |
| Optical Filter | 650nm Filter |
|
Interface |
DVP or MIPI |
| Product Size | 8mm(W) × 65mm(L) × 6.3mm(H) |
| Power Supply |
Digital: 1.5V ± 5% |
|
Image Transfer Rate |
640 x 360: 60 fps HD (1280 x 720): 30 fps |
YXF TECH has high-precision design technology and large-scale production capacity for lenses and PCB, the core components of camera module. We are directly cooperating and purchasing with Sensor Manufacturer (OMNIVISION, SONY, ONSEMI, SAMSUNG, etc.), and we have access to Original Brand New Sensor, and technical support from Sensor Manufacturers.
Based on our high-resolution lenses technology, optimized PCB design technology, camera module integration and packaging technology, and highly customized services, we could provide you with camera module with various features and functions.
YXF has been focusing on the research and manufacturing of camera modules and optical lenses, R&D and providing advanced and optimal solutions for various industries.
"Continuous innovation" is the central philosophy of YXF. Following this philosophy, YXF has successfully provided high-quality products and customized vision solutions for partners in industries such as consumer electronics, smart home, automotive, robotics, medical devices, surveillance, water and electricity meter monitoring, video doorbell, 3D scanner, PIR camera, AI, AR&VR, and educational devices.
YXF manufacturing base is designed and constructed according to industry safety standards and in accordance with the requirements of ISO9001, ISO 14001, QC080000 Quality Management and Environmental Management production standards.
Our factory has an area of 2,500 m², with a thousand-level dust-free room, hundred-level workbench, automatic production line and manual production line. With a monthly production capacity of about 600k and an annual production capacity of 7000k, YXF has invested heavily in intelligent manufacturing to achieve efficient and high quality mass production. Whether it's camera module innovation and R&D, or mass production, you can always trust us.
YXF has implemented a strict quality control program during the production process. Product quality inspection must be done through eight processes, including IQC, IPQC, FQC, OQC, etc., in strict accordance with the quality policy and control of product quality.
In order to provide our partners with innovative and customized best vision solutions and ensure product quality above industry standards, we have established a thousand-level dust-free room, hundred-level workbench, automated production line, senior R&D engineers and cutting-edge manufacturing equipment to control quality and improve efficiency from the source. We provide professional and best camera module OEM solutions to our partners.
Q
Do you provide OEM Service?
A
We provide OEM service, we have R&D department, production department and quality control department, we can provide OEM service to meet your needs. Welcome to contact us to customize your camera module.
Q
Do you have Minimum Order Quantity (MOQ)?
A
We provide OEM service, we have R&D department, production department and quality control department, we can provide OEM service to meet your needs. Welcome to contact us to customize your camera module.
Q
What lenses are available?
A
We have lenses for M7, M12, wide angle, fisheye, etc. Our R&D engineers could match and customize the exact lens angle according to your requirements.
Q
Do you provide OEM Service?
A
We provide OEM service, we have R&D department, production department and quality control department, we can provide OEM service to meet your needs. Welcome to contact us to customize your camera module.
Q
What payment types do you support?
A
ou may choose to pay to our bank account, Western Union or PayPal: TT100% deposit.
Q
What payment types do you support?
A
ou may choose to pay to our bank account, Western Union or PayPal: TT100% deposit.
Q
What payment types do you support?
A
ou may choose to pay to our bank account, Western Union or PayPal: TT100% deposit.
