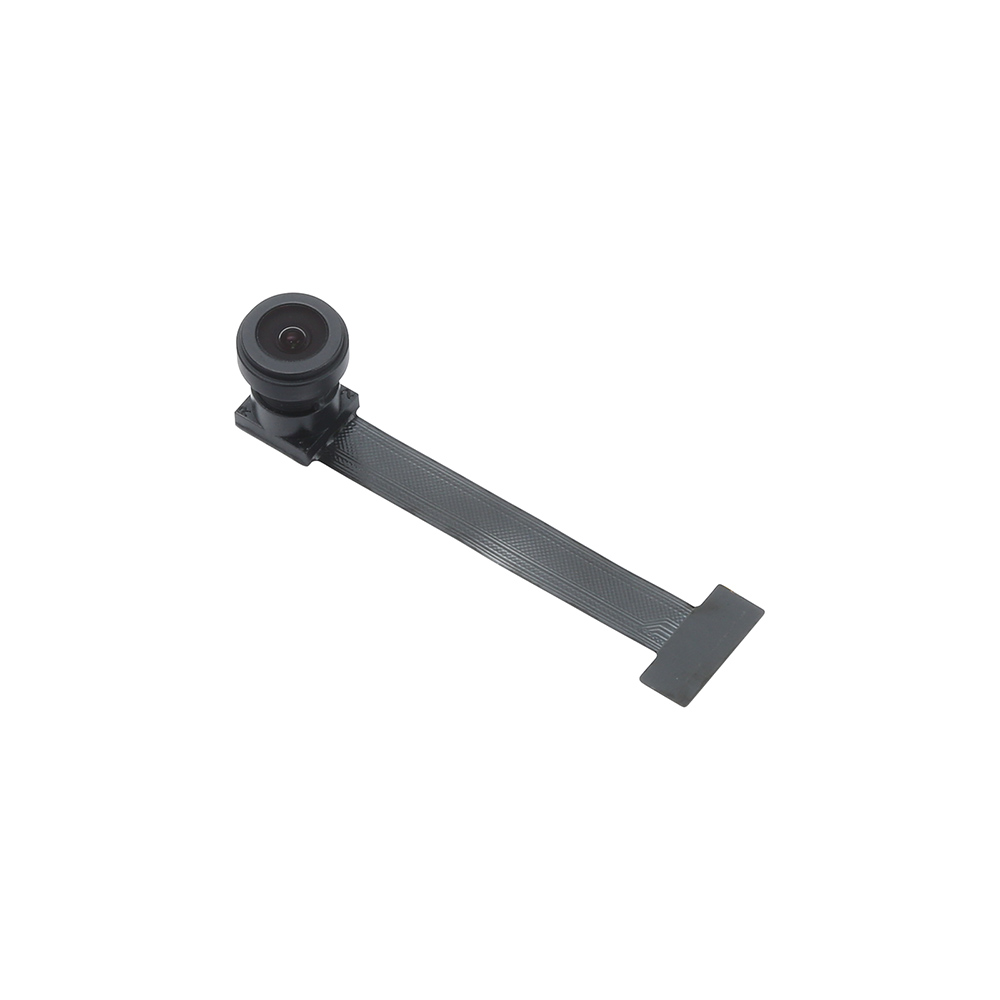

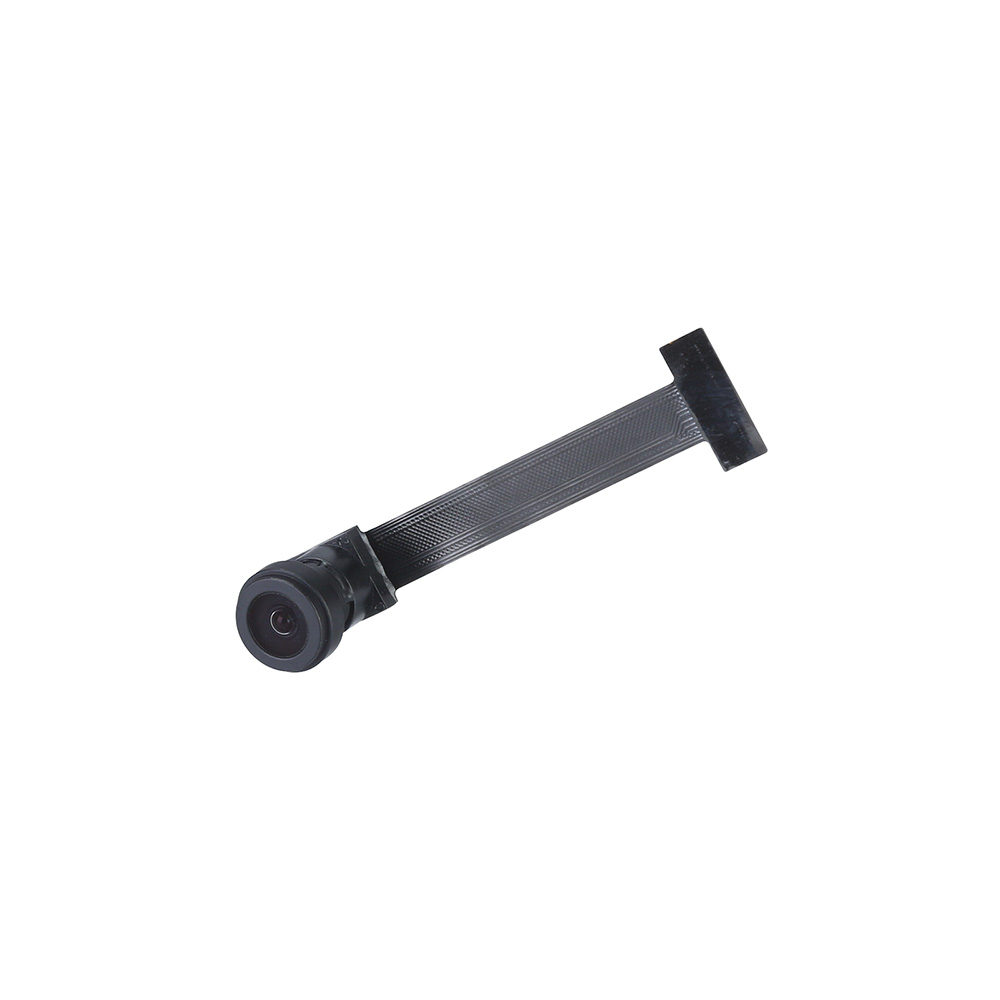

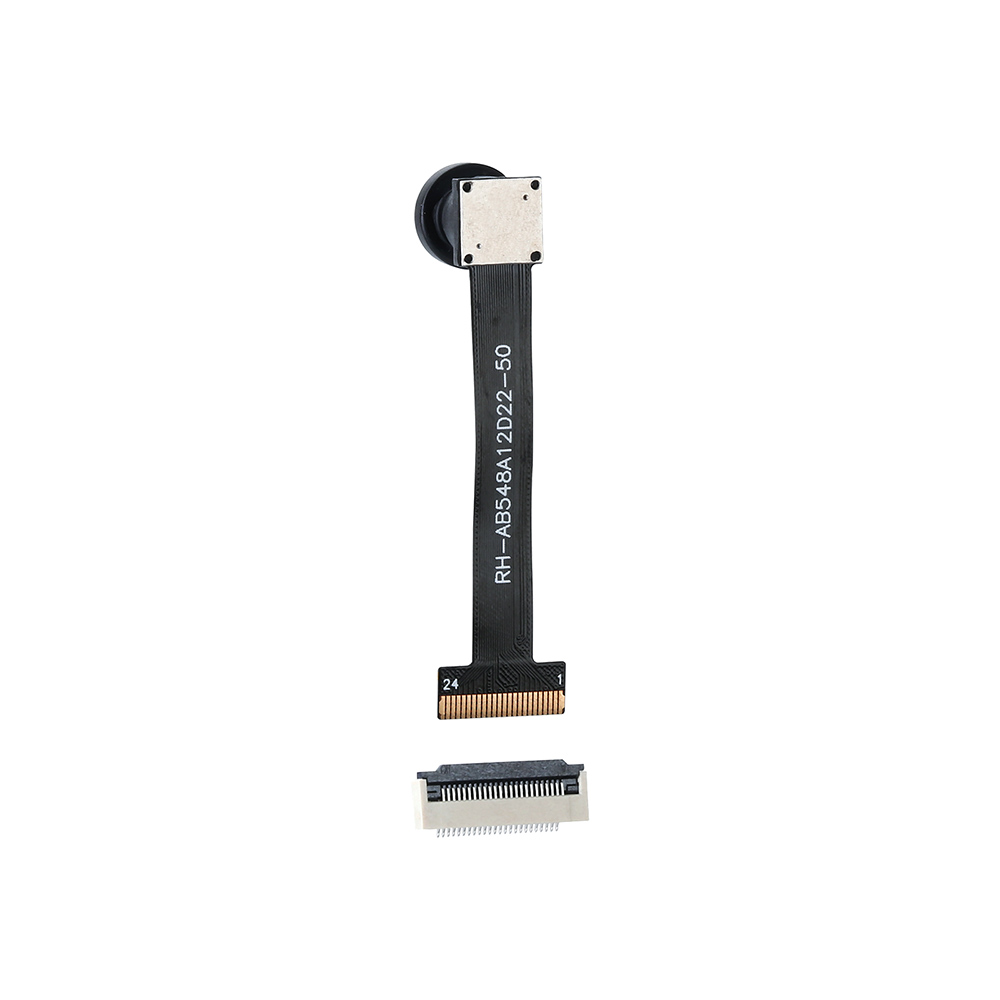

RH-AB548A12D22-50 is a 2MP wide-angle DVP camera module utilizing the GalaxyCore GC2145 CMOS image sensor. It supports a maximum resolution of 1616 × 1232 pixels at 60fps.
GC2145 ESP32 camera module provides smooth auto exposure (AE) and precise auto white balance (AWB) control under varying lighting conditions. Additionally, it supports noise reduction, color correction, and gamma correction to deliver finer and higher-resolution images.
Since the OV2640 sensor has been discontinued for years, the GC2145 sensor is the best available 2MP alternative for ESP32 development boards and provides superior imaging performance compared to the OV2640.
Therefore, the GC2145 DVP camera module is the optimal choice for ESP32 developers requiring a 2MP camera. YXF has already supplied and customized the GC2145 ESP32 camera module for hundreds of clients, ensuring it meets their project needs.
The GC2145 ESP32-Cam DVP camera module is widely used in applications such as barcode scanning, QR code recognition, license plate recognition, water/electric meter monitoring, industrial inspection, and surveillance camera.
GC2145 ESP32-Cam DVP camera module size is 8×49.7×4.72mm, diagonal viewing angle is 120º, filter is 650nm. Moreover, we can customise camera module Size, PIN Definition, FOV, Focal Length, Filter and so on according to your needs.
| Image Sensor | GalaxyCore GC2145 |
| Sensor Size | 1/5inch CMOS Image Sensor |
| Maximum Resolution | 1616H × 1232V |
| Pixel Size | 1.75μm × 1.75μm |
| Exposure System | Auto Exposure |
| Electronic Shutter | Electronic Rolling Shutter |
| Focus Type | Fixed Focus |
|
Output Format |
YCbCr4:2:2, RGB565, Raw Bayer |
| ADC resolution | 10 bit ADC |
| Stable Image Temp | 0℃ ～ 50℃ |
| FOV | 120 degree |
| Focus | 2.2 |
| Optical Filter | 650nm Filter |
|
Interface |
DVP or MIPI |
| Product Size | 8mm(W) × 49.7mm(L) × 4.72mm(H) |
| Power Supply |
AVDD: 2.7 ~ 3.0V |
|
Image Transfer Rate |
1616 x 1232: 30fps |
YXF TECH has high-precision design technology and large-scale production capacity for lenses and PCB, the core components of camera module. We are directly cooperating and purchasing with Sensor Manufacturer (OMNIVISION, SONY, ONSEMI, SAMSUNG, etc.), and we have access to Original Brand New Sensor, and technical support from Sensor Manufacturers.
Based on our high-resolution lenses technology, optimized PCB design technology, camera module integration and packaging technology, and highly customized services, we could provide you with camera module with various features and functions.
YXF has been focusing on the research and manufacturing of camera modules and optical lenses, R&D and providing advanced and optimal solutions for various industries.
"Continuous innovation" is the central philosophy of YXF. Following this philosophy, YXF has successfully provided high-quality products and customized vision solutions for partners in industries such as consumer electronics, smart home, automotive, robotics, medical devices, surveillance, water and electricity meter monitoring, video doorbell, 3D scanner, PIR camera, AI, AR&VR, and educational devices.
YXF manufacturing base is designed and constructed according to industry safety standards and in accordance with the requirements of ISO9001, ISO 14001, QC080000 Quality Management and Environmental Management production standards.
Our factory has an area of 2,500 m², with a thousand-level dust-free room, hundred-level workbench, automatic production line and manual production line. With a monthly production capacity of about 600k and an annual production capacity of 7000k, YXF has invested heavily in intelligent manufacturing to achieve efficient and high quality mass production. Whether it's camera module innovation and R&D, or mass production, you can always trust us.
YXF has implemented a strict quality control program during the production process. Product quality inspection must be done through eight processes, including IQC, IPQC, FQC, OQC, etc., in strict accordance with the quality policy and control of product quality.
In order to provide our partners with innovative and customized best vision solutions and ensure product quality above industry standards, we have established a thousand-level dust-free room, hundred-level workbench, automated production line, senior R&D engineers and cutting-edge manufacturing equipment to control quality and improve efficiency from the source. We provide professional and best camera module OEM solutions to our partners.
