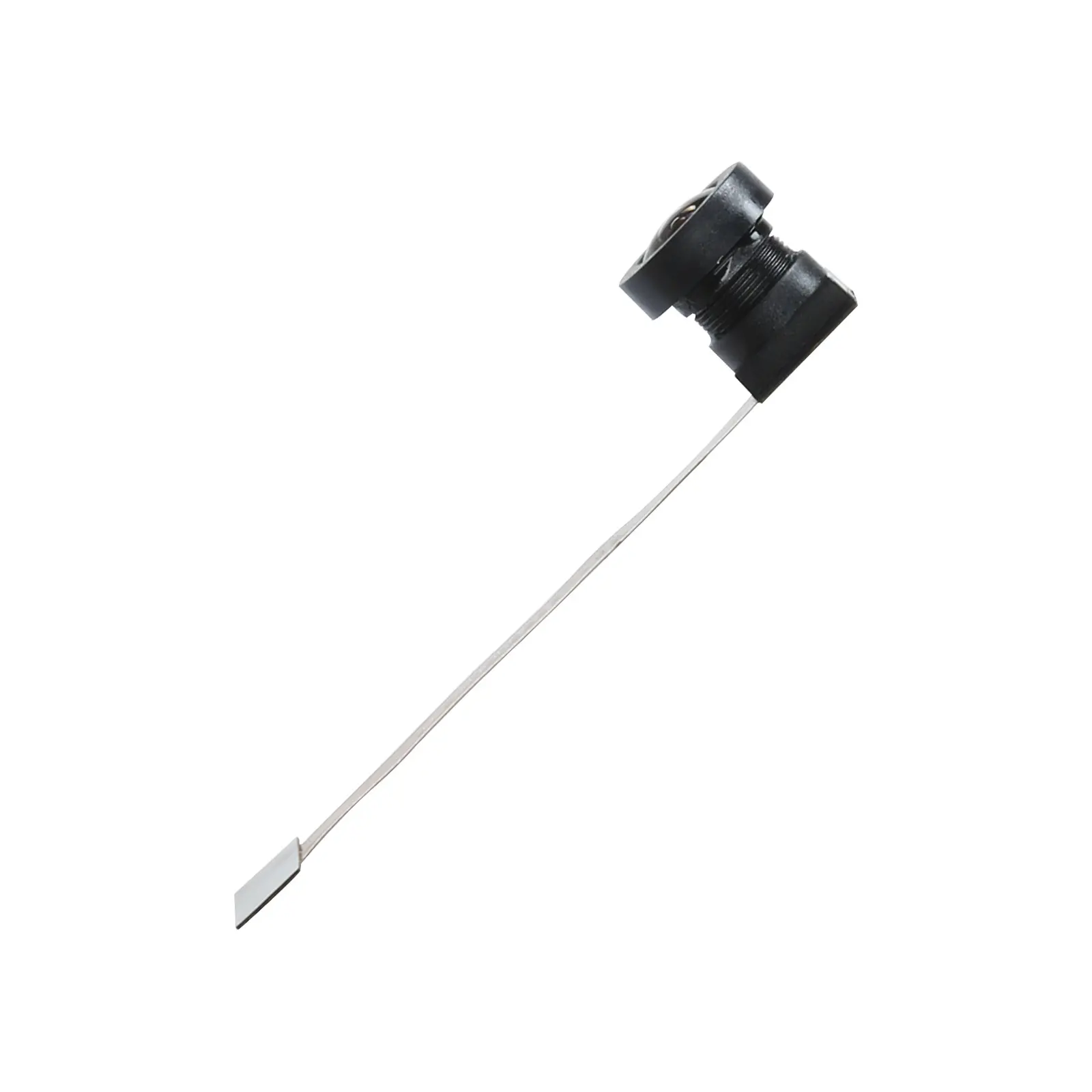

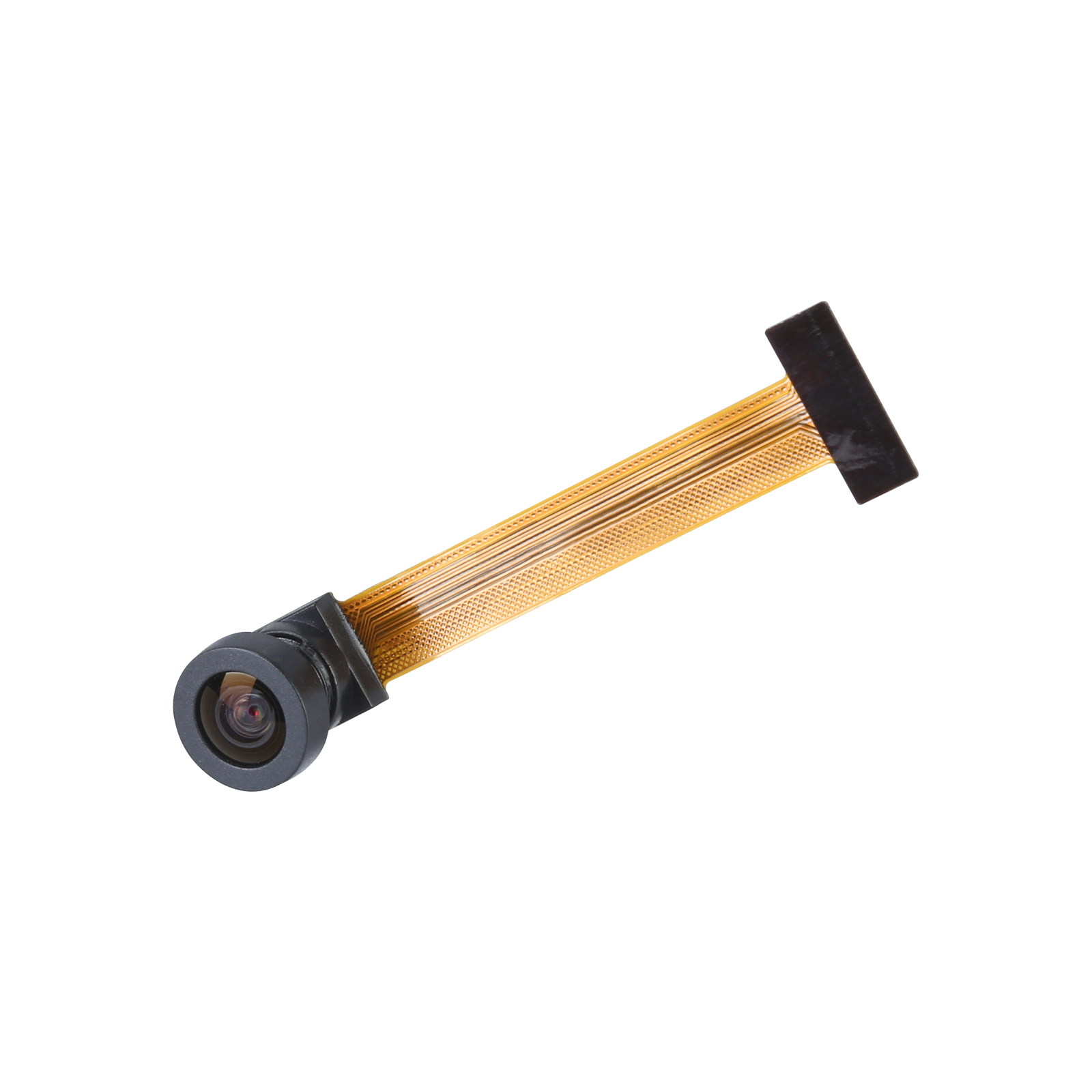

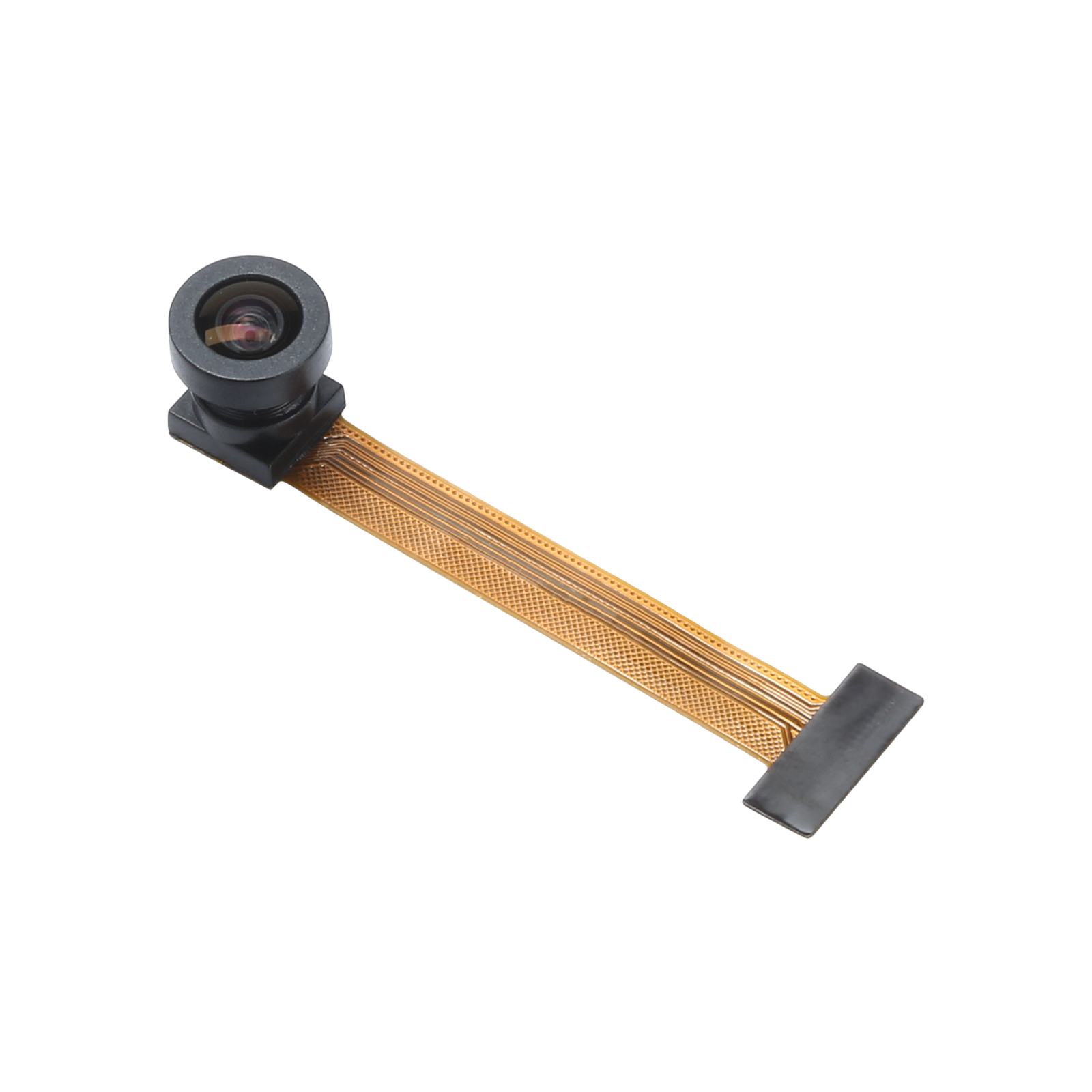

0.3MP 135 Degree Code Recognition ESP32 GC0308 DVP Camera Module

YXF-HDF0308-A50-135 uses the GalaxyCore GC0308 image sensor, which is a 0.3 MP Wide Angle DVP camera module. GC0308 camera module can run at 30fps at 24MHZ clock in VGA mode and you can control the image quality and data format. GC0308 camera module is the best option of 0.3MP camera module for ESP32 board users, YXF has provided and customised GC0308 camera module for hundreds of customers using ESP32 boards, which best meets the requirements of the project.GC0308 camera module is widely used for Barcode Recognition, Code Scanning, License Plate Recognition, Water/Electricity Meter Recognition, Industrial Inspection, Surveillance and so on.

Product Features
GalaxyCore GC0308
Compatible with ESP32
High Quality-Price Ratio
135° Diagonal Viewing Angle
Wide Angle Camera
640*480 Resolution
1/4inch Sensor
Rolling Shutter
Auto Exposure
DVP Interface
Fully Customizable
0.3MP 135 Degree Code Recognition ESP32 GC0308 DVP Camera Module
Product Information

YXF-HDF0308-A50-135 is a 0.3 MP Wide Angle DVP camera module that uses the GalaxyCore GC0308 image sensor. GC0308 sensor features a 4-transistor pixel structure to achieve high image quality and low noise.GC0308 camera module can run at 30fps at 24MHZ clock in VGA mode and you can control the image quality and data format.



GC0308 camera module is the best option for 0.3 MP camera module for ESP32 development board users. YXF has supplied and customised GC0308 camera module to hundreds of customers who use ESP32 to best meet their project requirements.



GC0308 camera module is a popular choice for a range of applications, including barcode recognition, code scanning, licence plate recognition, water/electricity meter recognition, industrial inspection, surveillance and other projects.

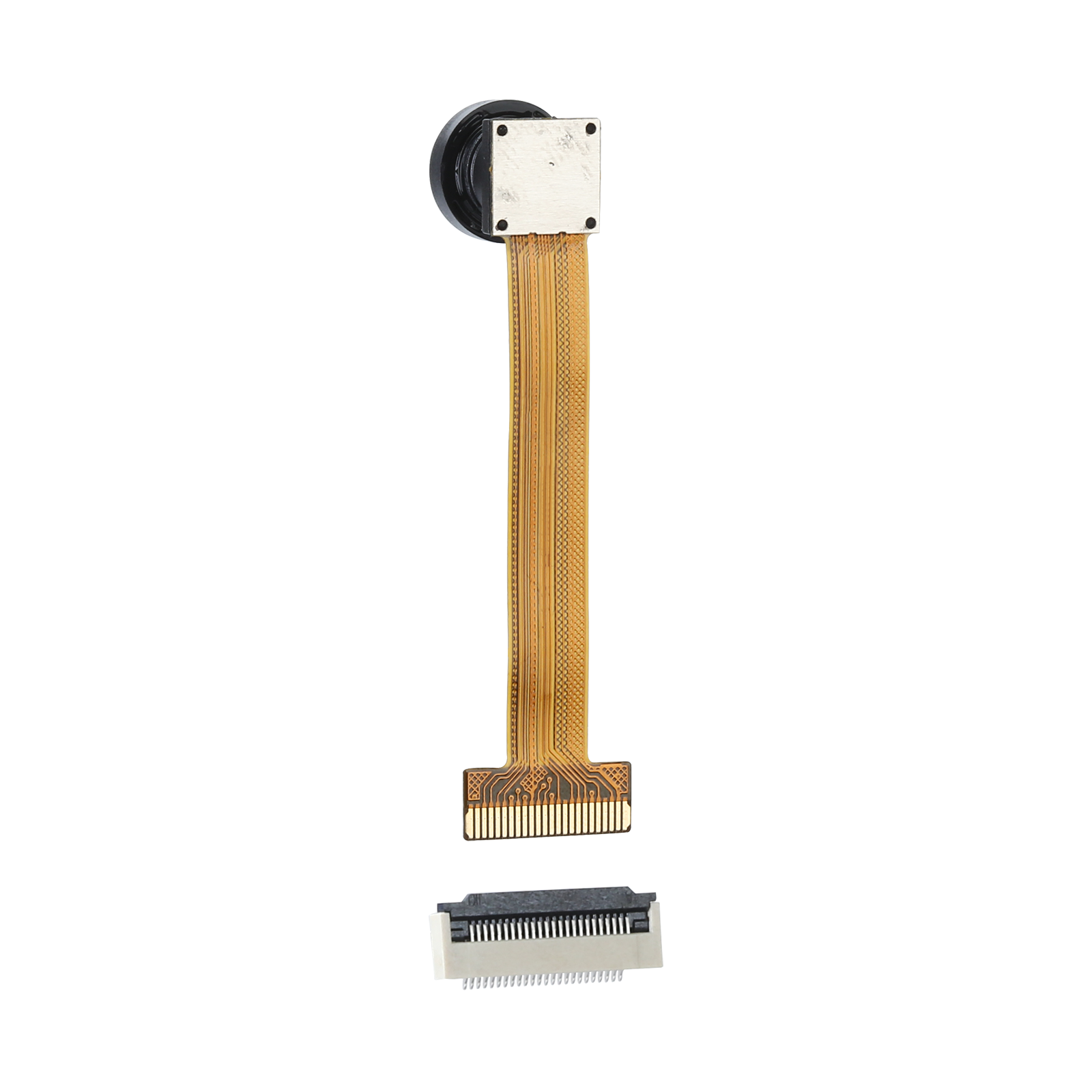

GC0308 DVP camera module size is 8×49.7×10mm, diagonal viewing angle is 135º, filter is 650nm. Moreover, we can customise camera module Size, PIN Definition, FOV, Focal Length, Filter and so on according to your needs.



0.3MP 135 Degree Code Recognition ESP32 GC0308 DVP Camera Module
0.3MP 135 Degree Code Recognition ESP32 GC0308 DVP Camera Module - 1

GALAXYCORE DVP Camera Module - GC0308 - Specification



Image Sensor GC0308
Sensor Size 1/6.5inch CMOS Image Sensor
Maximum Resolution 480H×640V
Pixel Size 3.4um × 3.4um
Exposure System Auto Exposure
Electronic Shutter Rolling Shutter
Focus Type Fixed Focus

Output Format

YCbCr4:2:2, RGB565, Raw Bayer
Power supply 2.7~3.3V, typical 2.8V
Stable Image Temp -10℃ ~60℃
FOV 135 degree
Focus 2.0
Optical Filter 650nm Filter

Interface

24 Pin DVP
Product Size 8mm(W) × 49.7mm(L) × 10mm(H)
Power Supply Single power supply requirement (2.8v)

Image Transfer Rate

30fps@24Mhz,VGA



0.3MP 135 Degree Code Recognition ESP32 GC0308 DVP Camera Module - 2
0.3MP 135 Degree Code Recognition ESP32 GC0308 DVP Camera Module  - 3





Camera Module Main Core Technology

Best user experience based on high customization, high resolution, high definition and stability


YXF TECH has high-precision design technology and large-scale production capacity for lenses and PCB, the core components of camera module. We are directly cooperating and purchasing with Sensor Manufacturer (OMNIVISION, SONY, ONSEMI, SAMSUNG, etc.), and we have access to Original Brand New Sensor, and technical support from Sensor Manufacturers.
Based on our high-resolution lenses technology, optimized PCB design technology, camera module integration and packaging technology, and highly customized services, we could provide you with camera module with various features and functions.



Image Sensor Camera Module



Company Profile

YXF has been focusing on the research and manufacturing of camera modules and optical lenses, R&D and providing advanced and optimal solutions for various industries.



"Continuous innovation" is the central philosophy of YXF. Following this philosophy, YXF has successfully provided high-quality products and customized vision solutions for partners in industries such as consumer electronics, smart home, automotive, robotics, medical devices, surveillance, water and electricity meter monitoring, video doorbell, 3D scanner, PIR camera, AI, AR&VR, and educational devices.



YXF Corporation Camera Module R&D Center



Capacity of Manufacturing Base
 YXF Camera Module Manufacturing Production Center

YXF manufacturing base is designed and constructed according to industry safety standards and in accordance with the requirements of ISO9001, ISO 14001, QC080000 Quality Management and Environmental Management production standards.

 YXF OEM Camera Module Production Process

Our factory has an area of 2,500 m², with a thousand-level dust-free room, hundred-level workbench, automatic production line and manual production line. With a monthly production capacity of about 600k and an annual production capacity of 7000k, YXF has invested heavily in intelligent manufacturing to achieve efficient and high quality mass production. Whether it's camera module innovation and R&D, or mass production, you can always trust us.


Quality Control
 YXF Camera Module PCB Manufacturing Base



YXF has implemented a strict quality control program during the production process. Product quality inspection must be done through eight processes, including IQC, IPQC, FQC, OQC, etc., in strict accordance with the quality policy and control of product quality.



In order to provide our partners with innovative and customized best vision solutions and ensure product quality above industry standards, we have established a thousand-level dust-free room, hundred-level workbench, automated production line, senior R&D engineers and cutting-edge manufacturing equipment to control quality and improve efficiency from the source. We provide professional and best camera module OEM solutions to our partners.



YXF Company has International Standard Certificates



FAQ

Q

Do you provide OEM Service?

A

We provide OEM service, we have R&D department, production department and quality control department, we can provide OEM service to meet your needs. Welcome to contact us to customize your camera module.

Q

Do you have Minimum Order Quantity (MOQ)?

A

We provide OEM service, we have R&D department, production department and quality control department, we can provide OEM service to meet your needs. Welcome to contact us to customize your camera module.

Q

What lenses are available?

A

We have lenses for M7, M12, wide angle, fisheye, etc. Our R&D engineers could match and customize the exact lens angle according to your requirements.

Q

Do you provide OEM Service?

A

We provide OEM service, we have R&D department, production department and quality control department, we can provide OEM service to meet your needs. Welcome to contact us to customize your camera module.

Q

What payment types do you support?

A

ou may choose to pay to our bank account, Western Union or PayPal: TT100% deposit.

Q

What payment types do you support?

A

ou may choose to pay to our bank account, Western Union or PayPal: TT100% deposit.

Q

What payment types do you support?

A

ou may choose to pay to our bank account, Western Union or PayPal: TT100% deposit.
