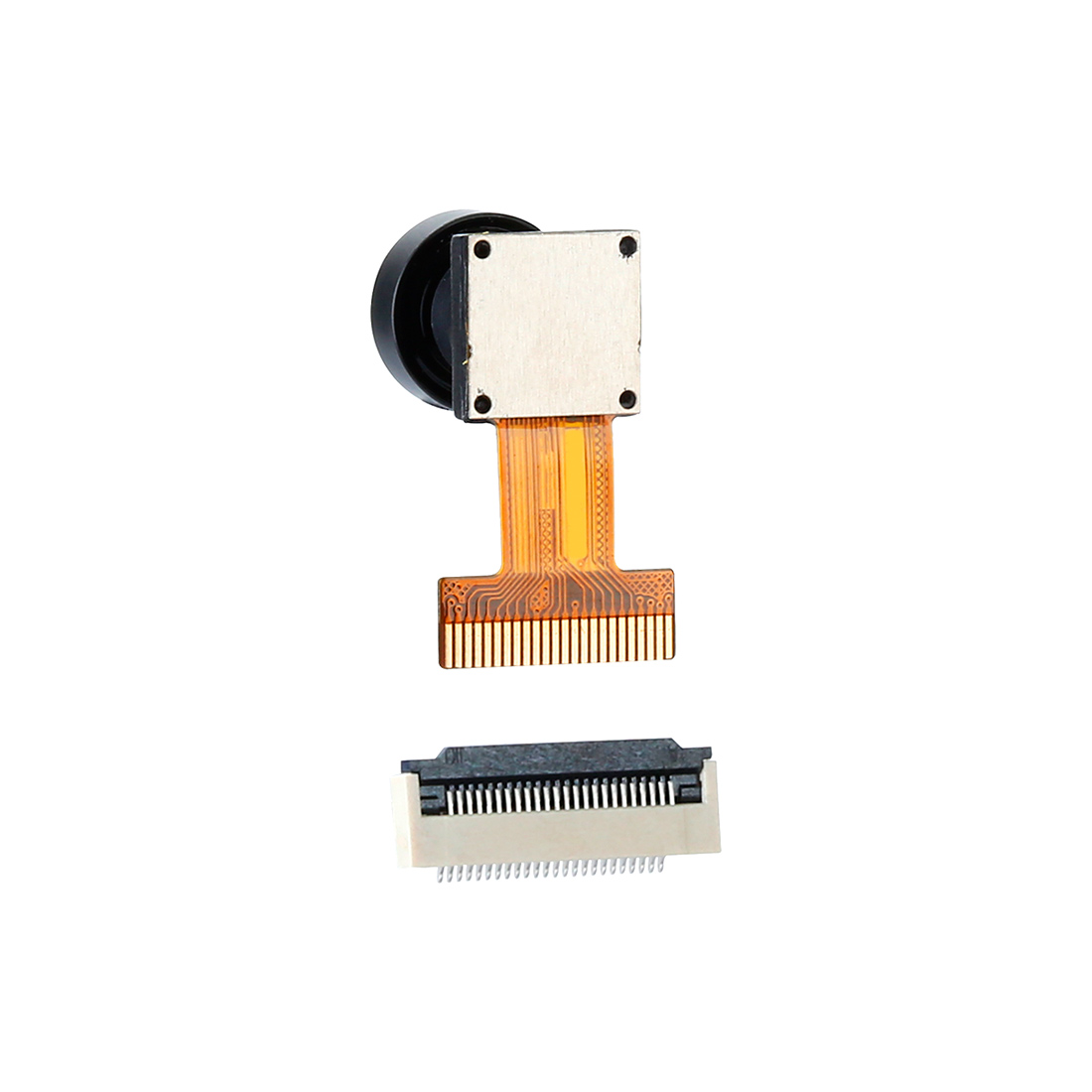

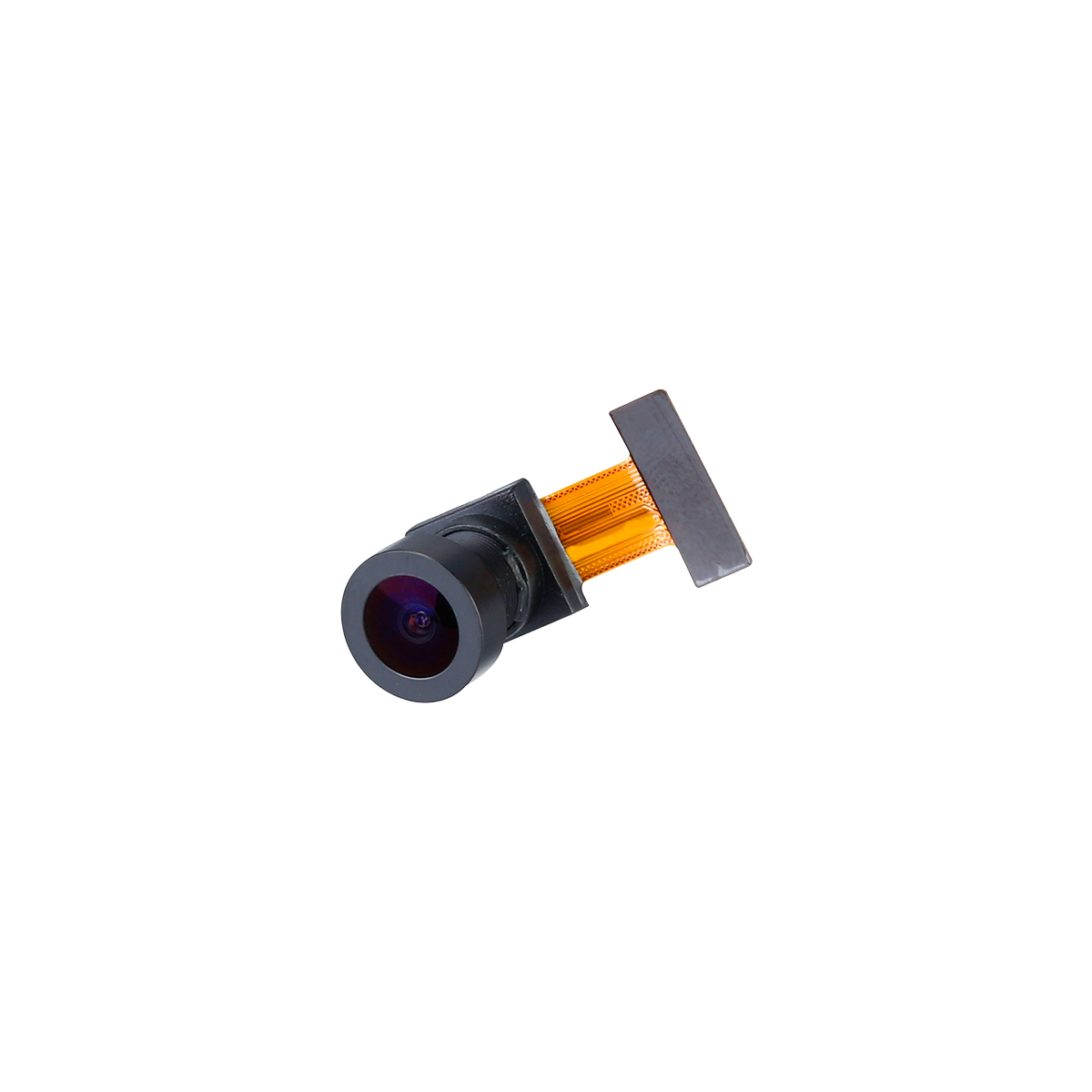

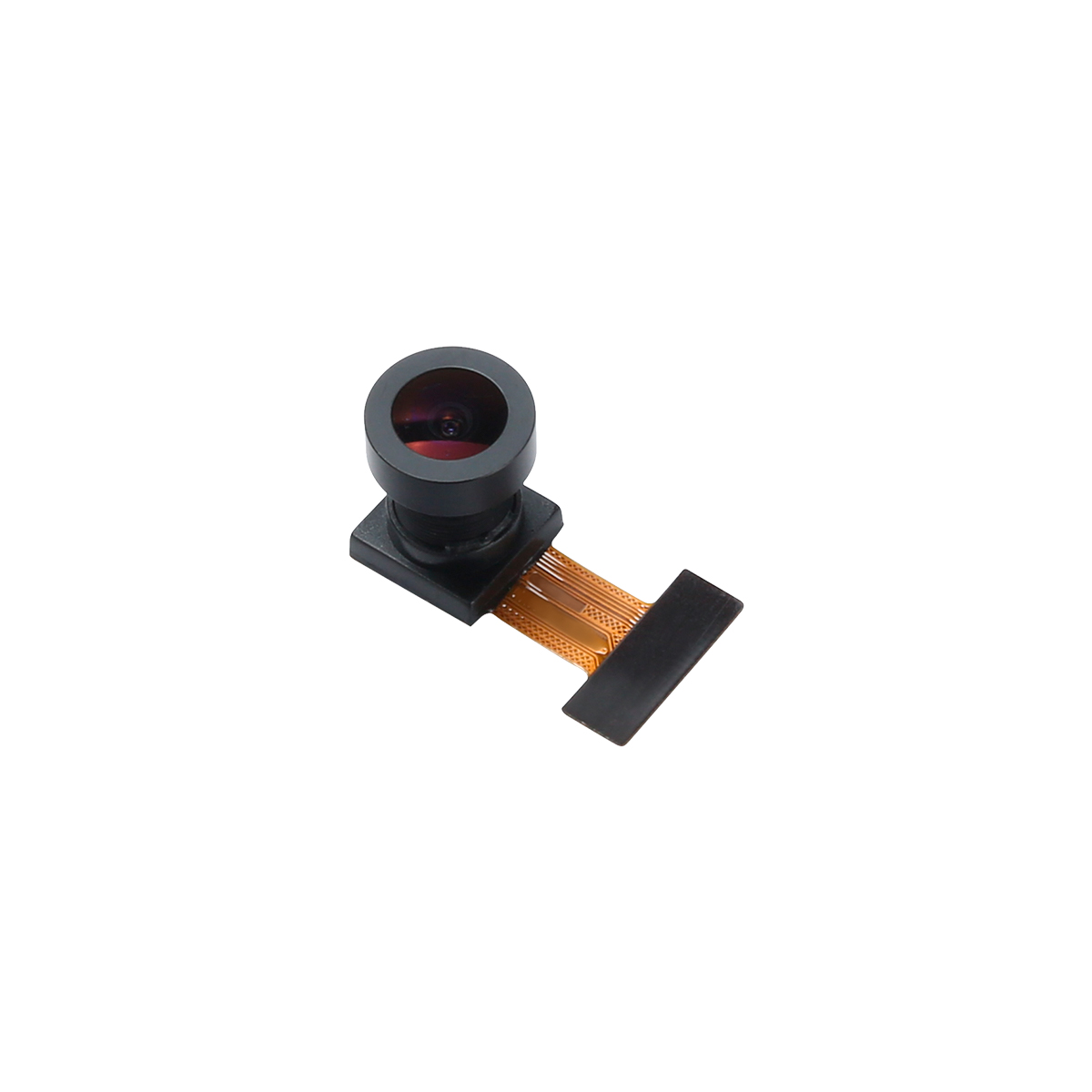

2MP 180 Degree ESP32 Cam Wide Angle OV2640 DVP Camera Module

Product Information

RH-AA048A62D29-40-180 is a 2MP Wide Angle DVP camera module, using the OMNIVISION OV2640 Low Voltage CMOS image sensor. It supports a maximum resolution of 1632x1232 pixels at 15fps, 30fps at SVG, 60fps at CIF.

OV2640 DVP camera module is equipped with a 180° wide-angle lens, allowing it to capture a broader field of view. OV2640 Wide Angle camera module offers various image control features such as exposure control, color saturation, white pixel elimination and noise reduction. Additionally, OV2640 sensor technology helps to reduce and eliminate common image noise caused by light or power sources, resulting in clean, stable HD images. Enables this 2MP DVP camera module to capture more detailed and clearer images.

OV2640 wide-angle camera module is one of the best 2MP camera module options for ESP32 development board users, providing a high cost-performance ratio. YXF has already supplied and customized OV2640 camera modules that meet the project needs of hundreds of ESP32 development board users.

OV2640 DVP camera module has 14×40.2×15.5MM size, 180º diagonal viewing angle and 650nm filter.  Moreover, we can customise camera module Size, PIN Definition, FOV, Focal Length, Filter and so on according to your needs.

OMNIVISION DVP Camera Module - OV2640 - Specification

Camera Module Main Core Technology

Best user experience based on High Customization, High Performance, High Definition and Stability

YXF TECH has high-precision design technology and large-scale production capacity for lenses and PCB, the core components of camera module. We are directly cooperating and purchasing with Sensor Manufacturer (OMNIVISION, SONY, ONSEMI, SAMSUNG, etc.), and we have access to Original Brand New Sensor, and technical support from Sensor Manufacturers.
Based on our high-resolution lenses technology, optimized PCB design technology, camera module integration and packaging technology, and highly customized services, we could provide you with camera module with various features and functions.

Company Profile

YXF has been focusing on the research and manufacturing of camera modules and optical lenses, R&D and providing advanced and optimal solutions for various industries.

"Continuous innovation" is the central philosophy of YXF. Following this philosophy, YXF has successfully provided high-quality products and customized vision solutions for partners in industries such as consumer electronics, smart home, automotive, robotics, medical devices, surveillance, water and electricity meter monitoring, video doorbell, 3D scanner, PIR camera, AI, AR&VR, and educational devices.

Capacity of Manufacturing Base

YXF manufacturing base is designed and constructed according to industry safety standards and in accordance with the requirements of ISO9001, ISO 14001, QC080000 Quality Management and Environmental Management production standards.

Our factory has an area of 2,500 m², with a thousand-level dust-free room, hundred-level workbench, automatic production line and manual production line. With a monthly production capacity of about 600k and an annual production capacity of 7000k, YXF has invested heavily in intelligent manufacturing to achieve efficient and high quality mass production. Whether it's camera module innovation and R&D, or mass production, you can always trust us.

Quality Control

YXF has implemented a strict quality control program during the production process. Product quality inspection must be done through eight processes, including IQC, IPQC, FQC, OQC, etc., in strict accordance with the quality policy and control of product quality.

In order to provide our partners with innovative and customized best vision solutions and ensure product quality above industry standards, we have established a thousand-level dust-free room, hundred-level workbench, automated production line, senior R&D engineers and cutting-edge manufacturing equipment to control quality and improve efficiency from the source. We provide professional and best camera module OEM solutions to our partners.

FAQ
