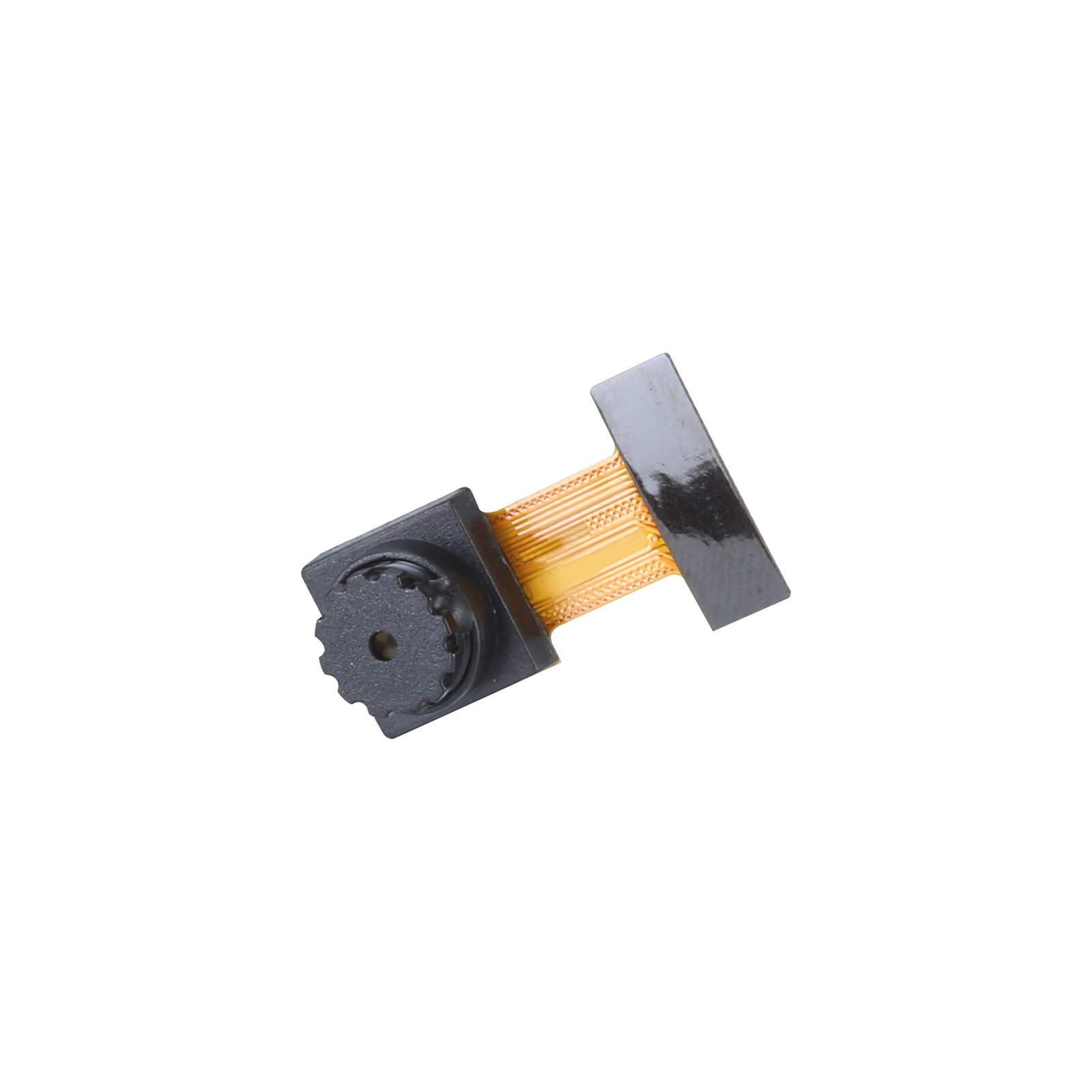

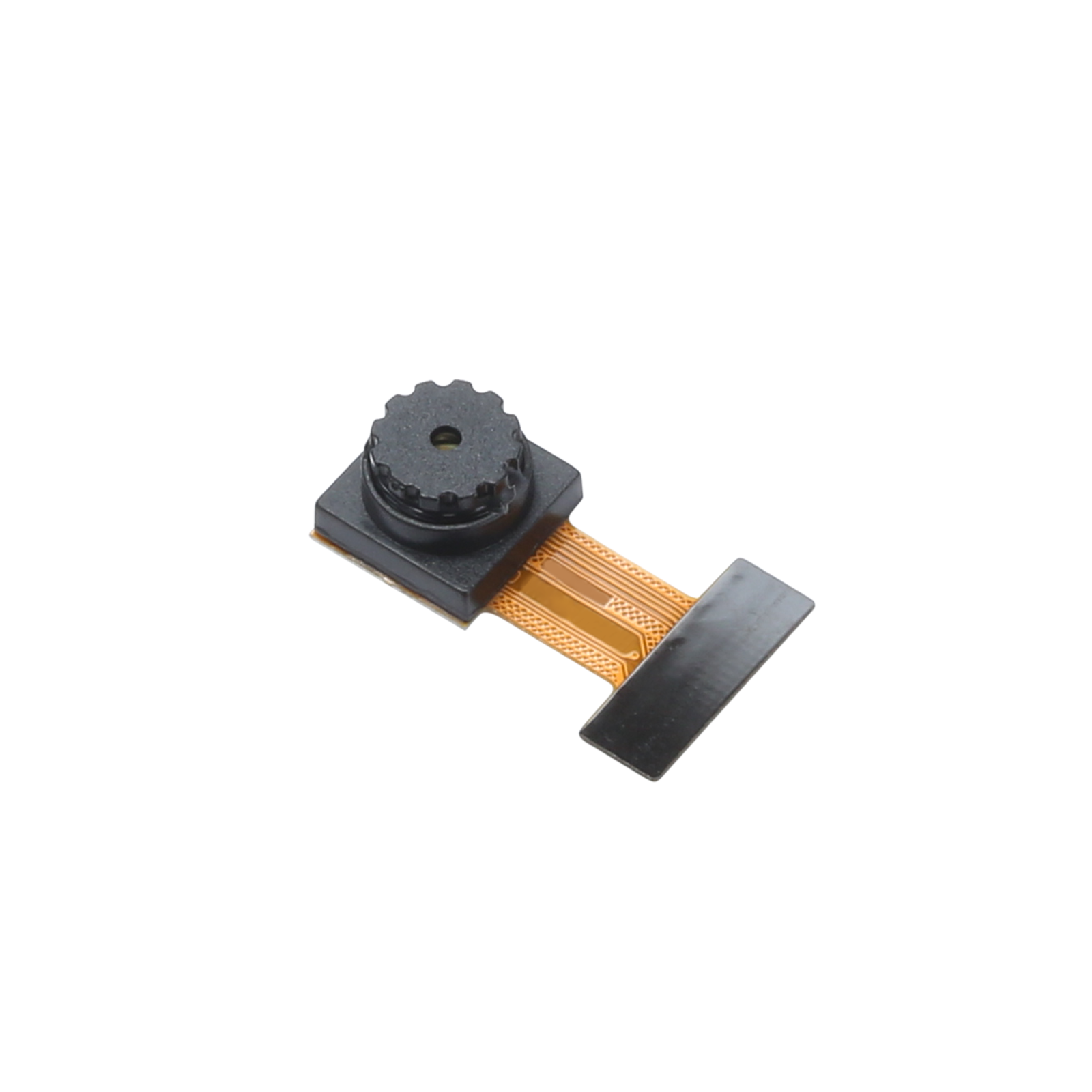

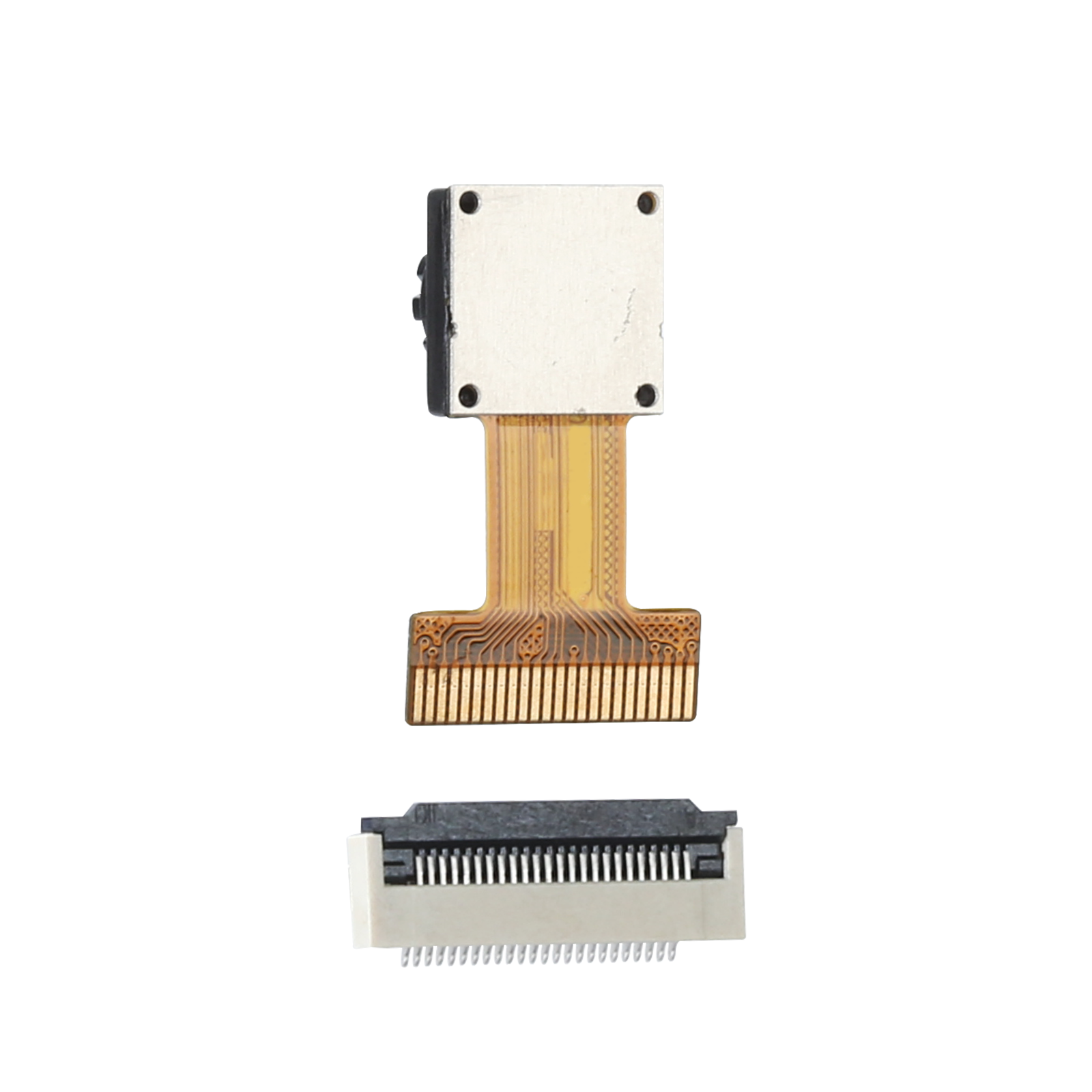

RH2640-A24-V2-68 is a 2 MP DVP camera module that uses the OMNIVISION OV2640 image sensor. The technology of the OV2640 sensor reduces and eliminates common light source/power source image contamination to produce clean, stable HD images.
OV2640 camera module is one of the best option of 2MP camera module for ESP32 development board users, it's a cost-effective camera module, YXF has provided and customized OV2640 camera module for hundreds of customers using ESP32 development boards, which best meets the needs of the project.
It is widely used for Barcode Recognition, Code Scanning, Visual Doorbell, Water/Electricity Meter Shooting, Surveillance and many more projects.
OV2640 DVP camera module has 9×24×6.3MM size, 62º diagonal viewing angle and 650nm filter. Moreover, we can customise camera module Size, PIN Definition, FOV, Focal Length, Filter and so on according to your needs.
| Image Sensor | OV2640 |
| Sensor Size | 1/4inch CMOS Image Sensor |
| Maximum Resolution | 1600H×1200V |
| Pixel Size | 1.4um × 1.4um |
| Exposure System | Auto Exposure |
| Electronic Shutter | Rolling Shutter |
| Focus Type | Fixed Focus |
|
Output Format |
YUV(4221420)/YCbCr422 RGB565/555 8-bit compressed data 8-/10-bit Raw RGB data |
| Dynamic Range | 50 dB |
| Stable Image Temp | 0℃ ～50℃ |
| FOV | 62 degree |
| Focus | 2.0 ± 5% |
| Optical Filter | 650nm Filter |
|
Interface |
DVP |
| Product Size | 9mm(W) × 24mm(L) × 6.3mm(H) |
| Power Supply | Core: 1.3VDC ± 5% Analog: 2.5~3.0VDC I/O: 1.7V to 3.3V |
|
Image Transfer Rate |
UXGA/SXGA 15 fps SVGA 30 fps CIF 60 fps |
| Image Area | 3590μm x 2684μm |
| Package Dimensions | 5725μm x 6285μm |
YXF TECH has high-precision design technology and large-scale production capacity for lenses and PCB, the core components of camera module. We are directly cooperating and purchasing with Sensor Manufacturer (OMNIVISION, SONY, ONSEMI, SAMSUNG, etc.), and we have access to Original Brand New Sensor, and technical support from Sensor Manufacturers.
Based on our high-resolution lenses technology, optimized PCB design technology, camera module integration and packaging technology, and highly customized services, we could provide you with camera module with various features and functions.
YXF has been focusing on the research and manufacturing of camera modules and optical lenses, R&D and providing advanced and optimal solutions for various industries.
"Continuous innovation" is the central philosophy of YXF. Following this philosophy, YXF has successfully provided high-quality products and customized vision solutions for partners in industries such as consumer electronics, smart home, automotive, robotics, medical devices, surveillance, water and electricity meter monitoring, video doorbell, 3D scanner, PIR camera, AI, AR&VR, and educational devices.
YXF manufacturing base is designed and constructed according to industry safety standards and in accordance with the requirements of ISO9001, ISO 14001, QC080000 Quality Management and Environmental Management production standards.
Our factory has an area of 2,500 m², with a thousand-level dust-free room, hundred-level workbench, automatic production line and manual production line. With a monthly production capacity of about 600k and an annual production capacity of 7000k, YXF has invested heavily in intelligent manufacturing to achieve efficient and high quality mass production. Whether it's camera module innovation and R&D, or mass production, you can always trust us.
YXF has implemented a strict quality control program during the production process. Product quality inspection must be done through eight processes, including IQC, IPQC, FQC, OQC, etc., in strict accordance with the quality policy and control of product quality.
In order to provide our partners with innovative and customized best vision solutions and ensure product quality above industry standards, we have established a thousand-level dust-free room, hundred-level workbench, automated production line, senior R&D engineers and cutting-edge manufacturing equipment to control quality and improve efficiency from the source. We provide professional and best camera module OEM solutions to our partners.
Q
Do you provide OEM Service?
A
We provide OEM service, we have R&D department, production department and quality control department, we can provide OEM service to meet your needs. Welcome to contact us to customize your camera module.
Q
Do you have Minimum Order Quantity (MOQ)?
A
We provide OEM service, we have R&D department, production department and quality control department, we can provide OEM service to meet your needs. Welcome to contact us to customize your camera module.
Q
What lenses are available?
A
We have lenses for M7, M12, wide angle, fisheye, etc. Our R&D engineers could match and customize the exact lens angle according to your requirements.
Q
Do you provide OEM Service?
A
We provide OEM service, we have R&D department, production department and quality control department, we can provide OEM service to meet your needs. Welcome to contact us to customize your camera module.
Q
What payment types do you support?
A
ou may choose to pay to our bank account, Western Union or PayPal: TT100% deposit.
Q
What payment types do you support?
A
ou may choose to pay to our bank account, Western Union or PayPal: TT100% deposit.
Q
What payment types do you support?
A
ou may choose to pay to our bank account, Western Union or PayPal: TT100% deposit.
