0.3MP YXF08-77 GC0308 Camera Module | Custom-designed for MAX78000CAM02 Edge AI Kit

Product Information

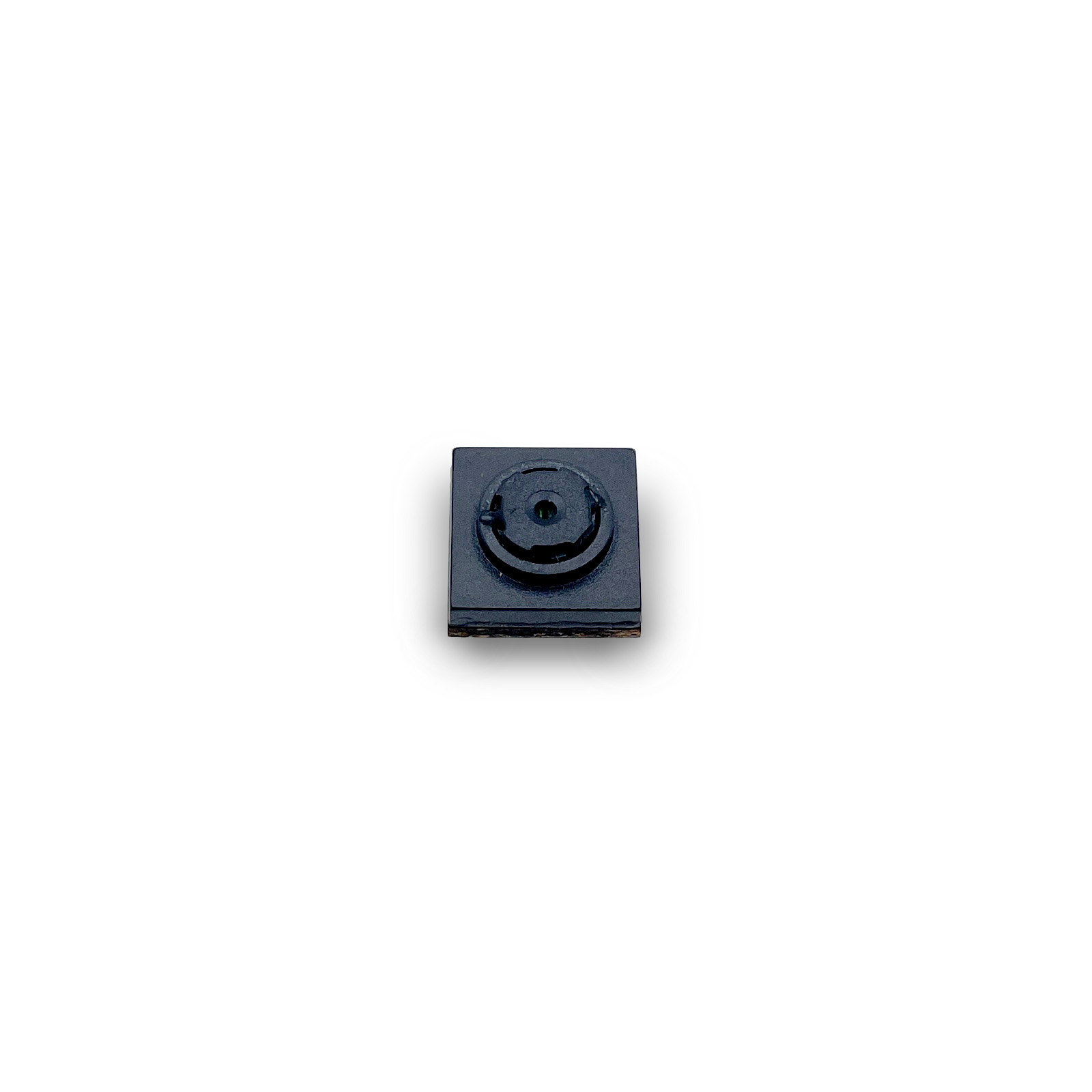

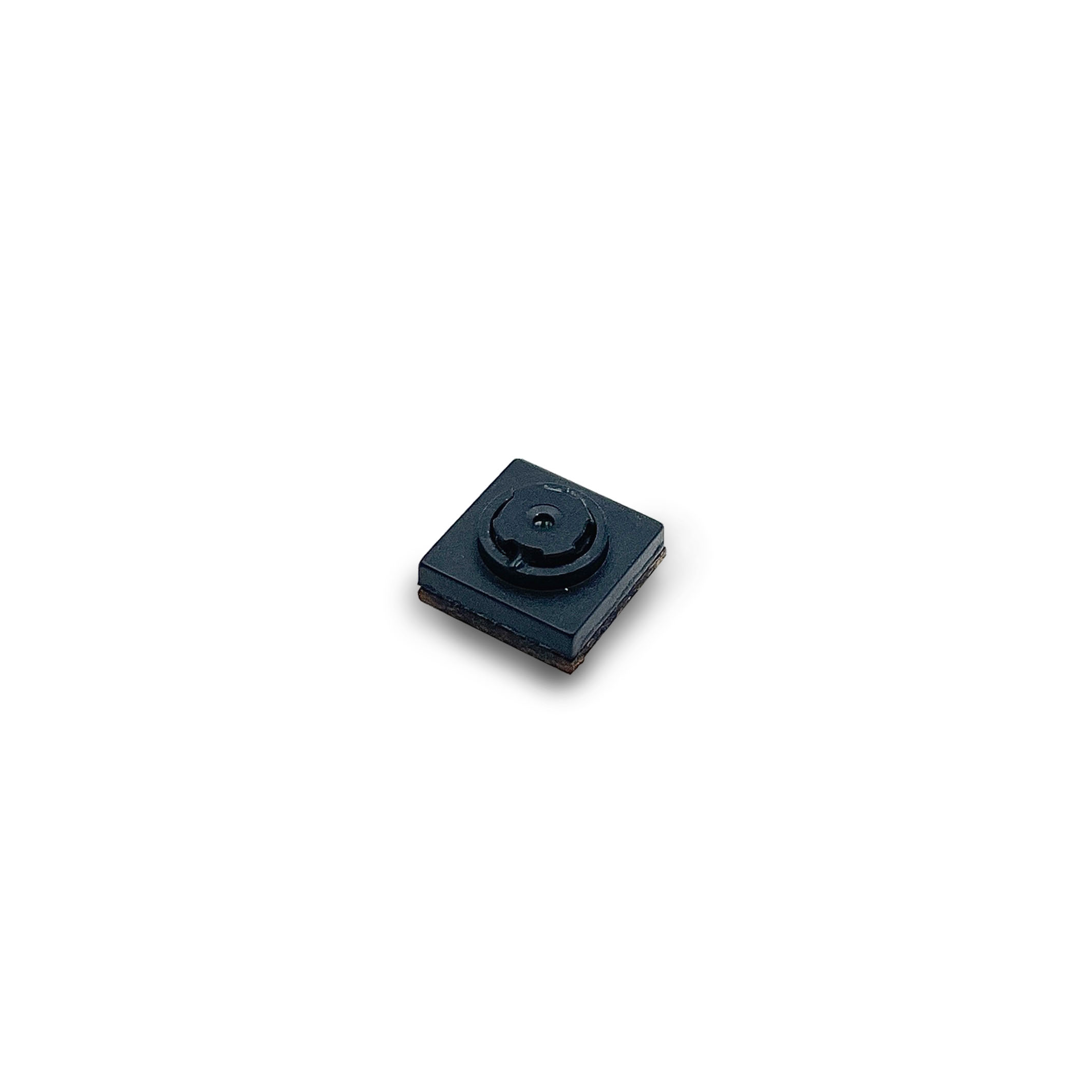

YXF08-77 is a compact and low-power 0.3MP camera module built with the GC0308 sensor, specifically designed and optimized for use with the MAX78000CAM02 Edge AI Development Kit from Analog Devices. As the official imaging module listed in the MAX78000CAM02 datasheet, YXF08-77 is engineered and manufactured by YXF Camera for high-performance vision applications on embedded AI platforms.

Key Features

• VGA resolution (640x480) with 0.3MP GC0308 CMOS sensor

• Optimized for low power consumption with 2.8V operation

• 77° view angle, F2.2 fixed focus lens – ideal for close-range detection

• Supports YCbCr 4:2:2, RGB565, and RAW RGB output formats

• Compact size: 8mm × 8mm × 4.2mm, perfect for embedded edge devices

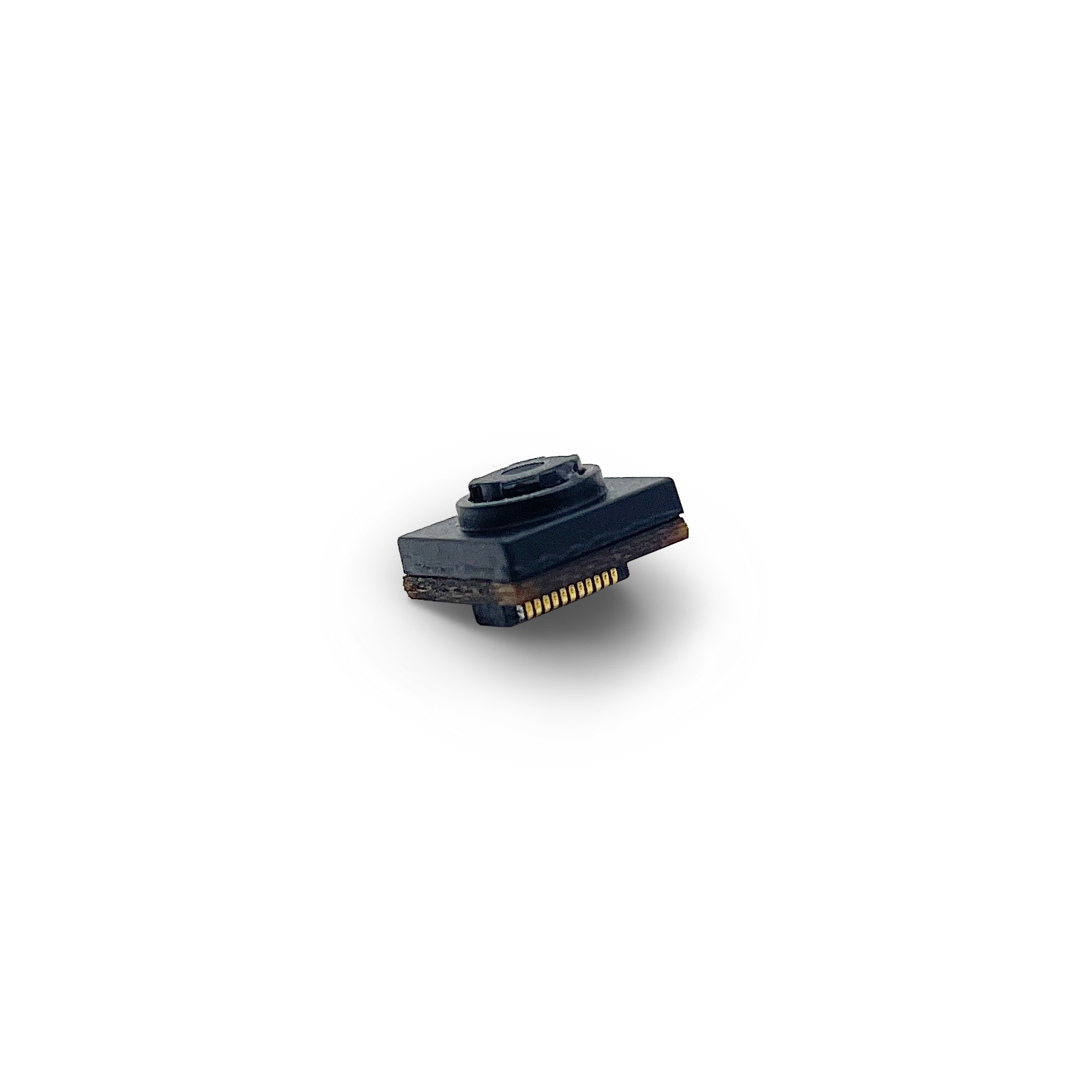

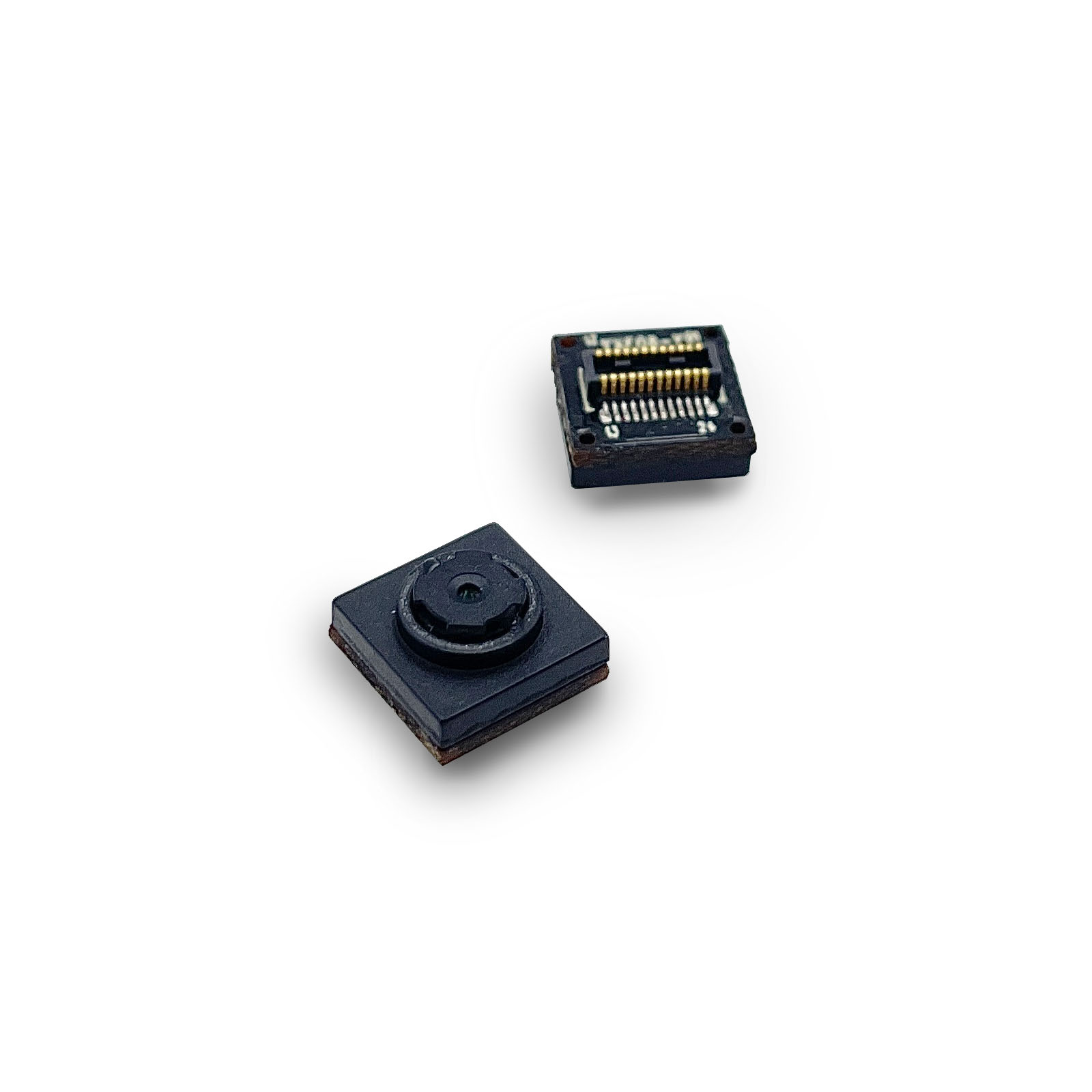

• Board-to-board 24-pin connector for seamless integration with MAX78000CAM02

Why Choose YXF08-77 ?

Unlike generic modules on the market, YXF08-77 was custom-developed by YXF Camera as a tailored solution for ADI's MAX78000CAM02 platform. With verified compatibility and electrical matching, it ensures stable, high-quality image capture for AI inference and training. Whether you’re building computer vision models or deploying real-time edge recognition, this module is the most trusted match for the platform.

Typical Applications

• Vision-based AI model development

• Gesture and face detection

• Object classification at the edge

• IoT and smart sensing systems

Looking to purchase the original YXF08-77 module listed in the MAX78000CAM02 datasheet? You're in the right place. This is the exact module referenced by ADI, manufactured by YXF Camera.

YXF08-77 Camera Module for MAX78000CAM02 - Specification

Camera Module Main Core Technology

Best user experience based on High Customization, High Performance, High Definition and Stability

YXF TECH has high-precision design technology and large-scale production capacity for lenses and PCB, the core components of camera module. We are directly cooperating and purchasing with Sensor Manufacturer (OMNIVISION, SONY, ONSEMI, SAMSUNG, etc.), and we have access to Original Brand New Sensor, and technical support from Sensor Manufacturers.
Based on our high-resolution lenses technology, optimized PCB design technology, camera module integration and packaging technology, and highly customized services, we could provide you with camera module with various features and functions.

Company Profile

YXF has been focusing on the research and manufacturing of camera modules and optical lenses, R&D and providing advanced and optimal solutions for various industries.

"Continuous innovation" is the central philosophy of YXF. Following this philosophy, YXF has successfully provided high-quality products and customized vision solutions for partners in industries such as consumer electronics, smart home, automotive, robotics, medical devices, surveillance, water and electricity meter monitoring, video doorbell, 3D scanner, PIR camera, AI, AR&VR, and educational devices.

Capacity of Manufacturing Base

YXF manufacturing base is designed and constructed according to industry safety standards and in accordance with the requirements of ISO9001, ISO 14001, QC080000 Quality Management and Environmental Management production standards.

Our factory has an area of 2,500 m², with a thousand-level dust-free room, hundred-level workbench, automatic production line and manual production line. With a monthly production capacity of about 600k and an annual production capacity of 7000k, YXF has invested heavily in intelligent manufacturing to achieve efficient and high quality mass production. Whether it's camera module innovation and R&D, or mass production, you can always trust us.

Quality Control

YXF has implemented a strict quality control program during the production process. Product quality inspection must be done through eight processes, including IQC, IPQC, FQC, OQC, etc., in strict accordance with the quality policy and control of product quality.

In order to provide our partners with innovative and customized best vision solutions and ensure product quality above industry standards, we have established a thousand-level dust-free room, hundred-level workbench, automated production line, senior R&D engineers and cutting-edge manufacturing equipment to control quality and improve efficiency from the source. We provide professional and best camera module OEM solutions to our partners.
