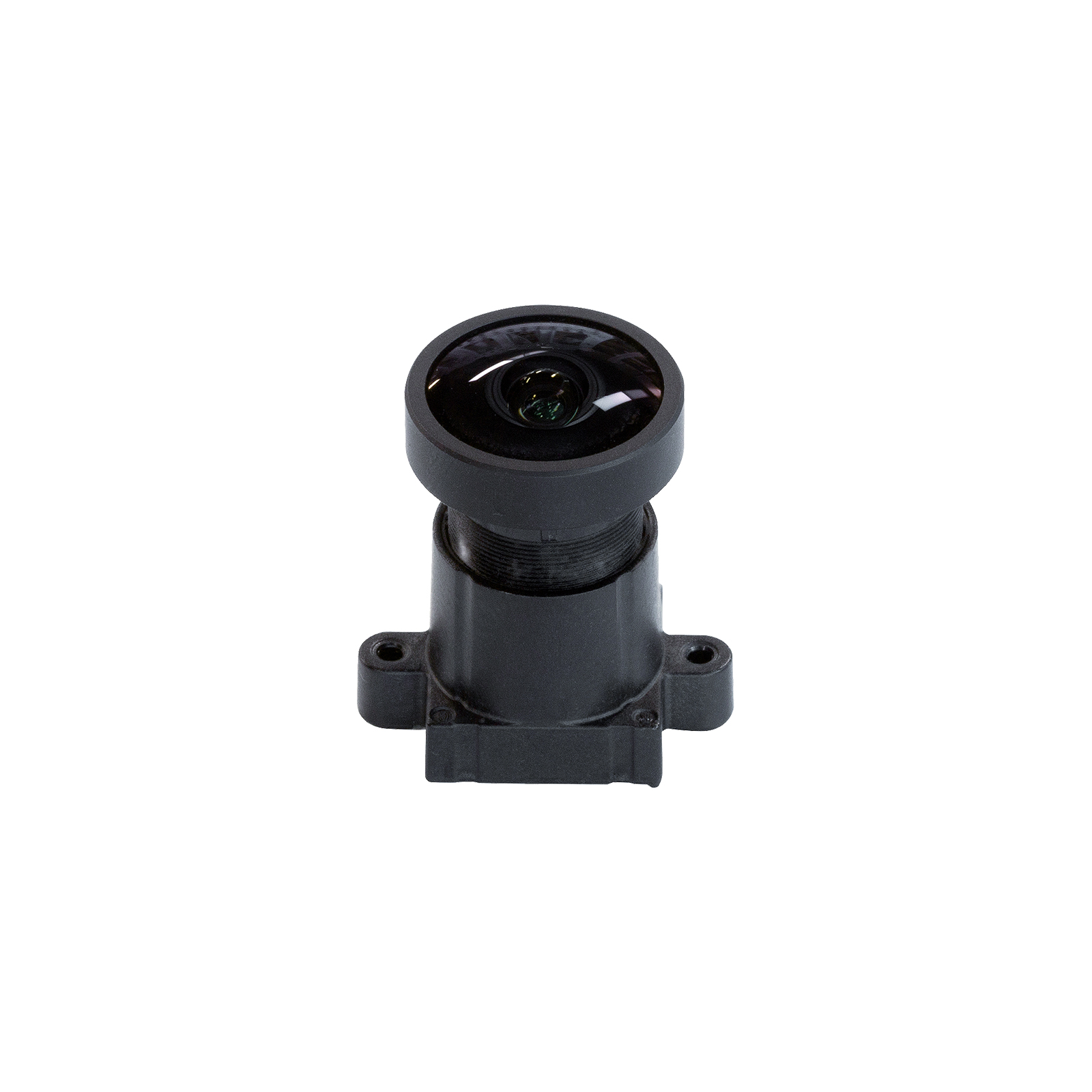

YXF2Y008D1 is an M12 lens for 13MP camera, which can be adapted to a variety of M12 mount, and provides a 154° wide field of view on a 1/2.3-inch sensor. This M12 wide-angle lens is also a F.no 2.5 large aperture lens, it has more light intake, it can bring brighter image, more significant depth of field effect. Making this M12 wide angle lens perfect for Car Recorders, Robot Vision, Surveillance, Security Cameras and more.
If you have other requirements, welcome to contact us, our Optical Engineers will provide the most suitable Lens for your requirements.
| Resolution | 13MP |
| Sensor Size | 1/2.3inch CMOS Image Sensor |
| Mount | M12 |
| Focal Length [mm] |
2.75mm |
| Back Focal Length [mm] | 5.59mm |
| Aperture |
F.no 2.5 |
| Field of View Diagonal [°] | 154° |
|
Field of View Horizontal [°] |
130° |
| Field of View Vertical [°] | 71° |
| Distortion [%] | 17% (MAX) |

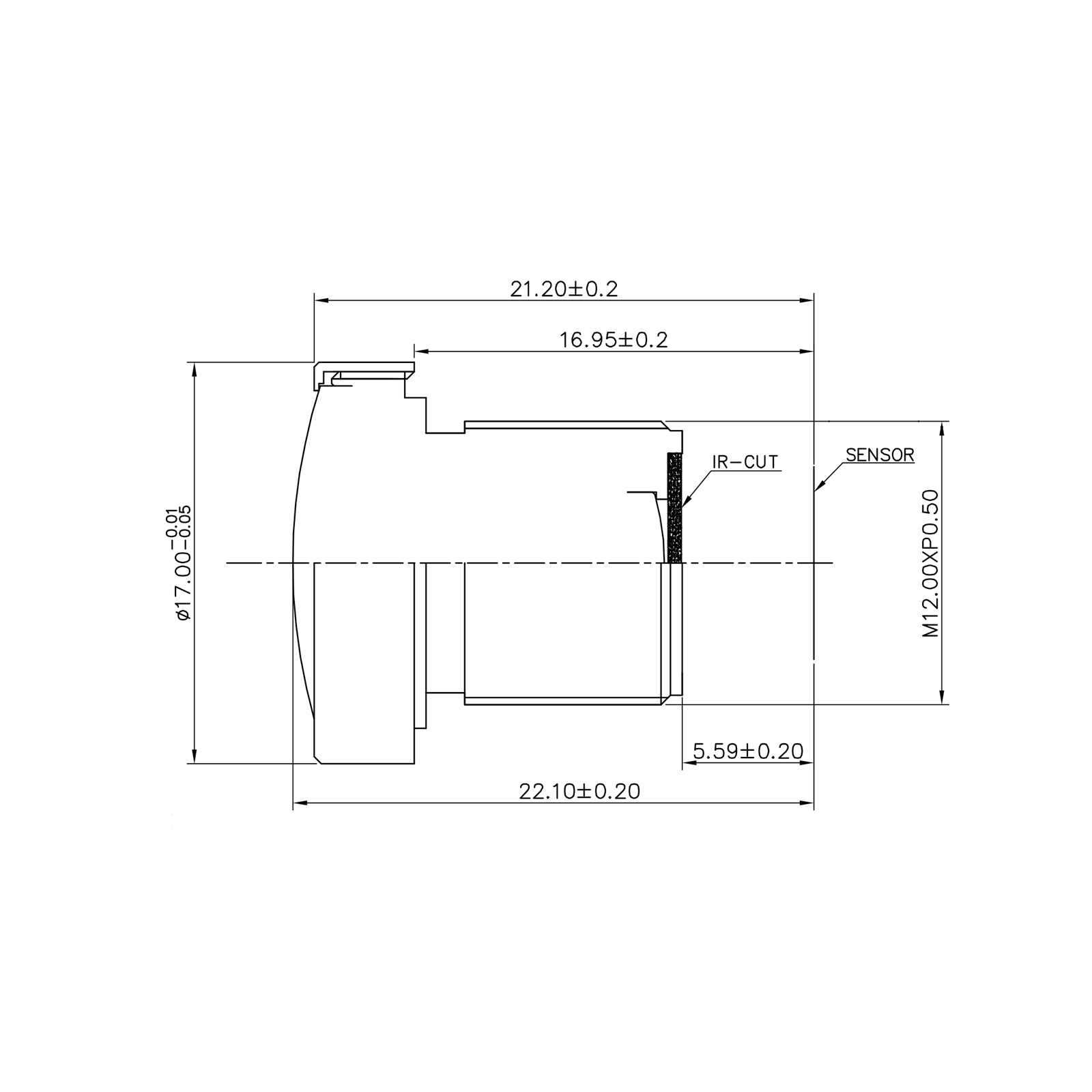

| Total Track Length [mm] | 22.1mm |
| Dimensions | φ17mm × 16.51mm |
| Optical Filter Type | 650nm Filter (Can be replaced with other) |
| Operation Temperature | -40℃ ~ 85℃ |
| Storage Temperature | -40℃ ~ 85℃ |
