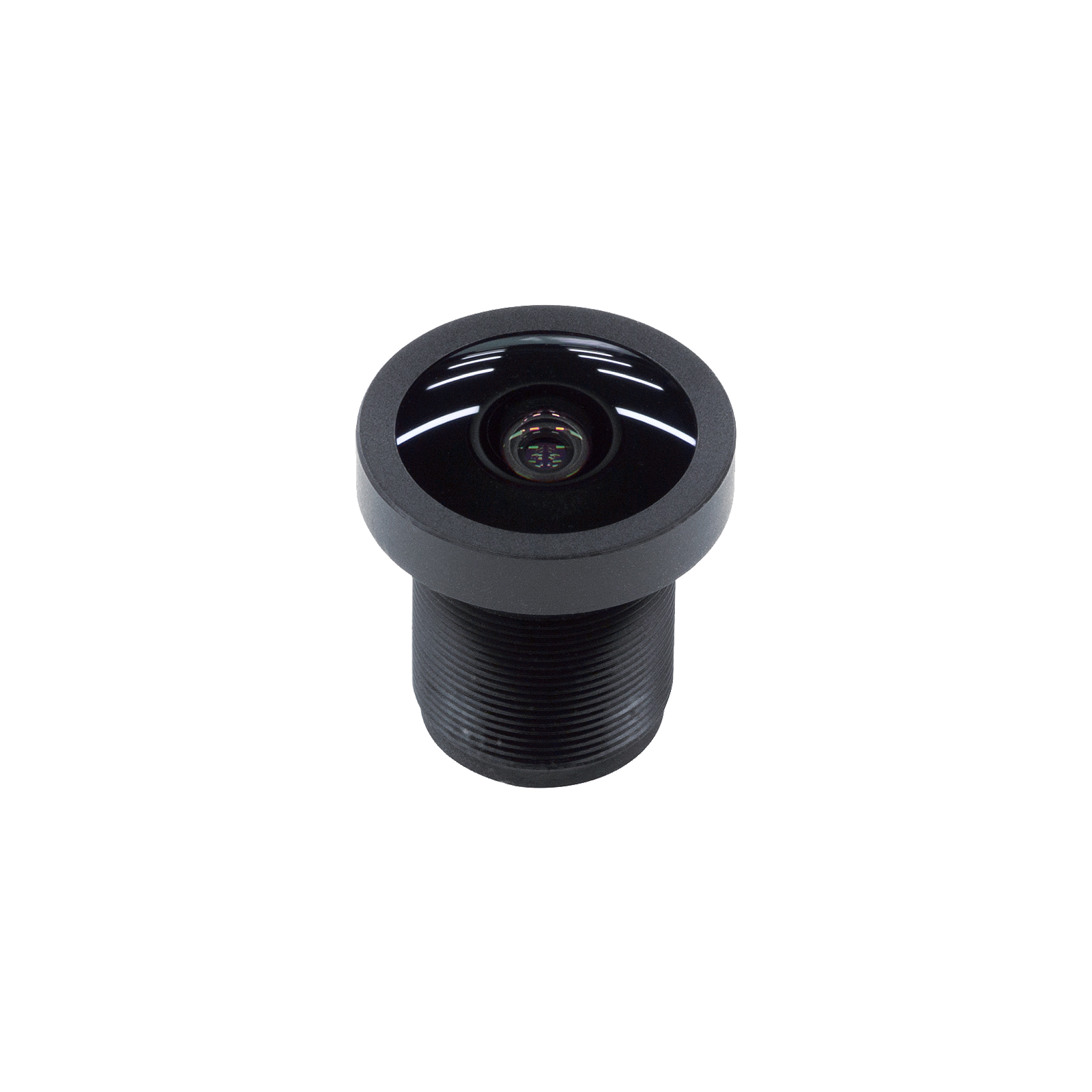

YXF3Y029A1 is an M12 lens for 4MP camera, which can be adapted to various M12 mount and provide 182° wide angle field of view on 1/3 inch sensor. This M12 wide-angle lens is also a F.no 2.5 large aperture lens, it has more light intake, it can bring brighter images, more significant depth of field effect. Making this M12 wide angle lens ideal for Automotive Camera, Car Recorder, Sports Camera, Surveillance, Security Camera and other products.
If you have other requirements, welcome to contact us, our Optical Engineers will provide the most suitable Lens for your requirements.
| Resolution | 4MP |
| Sensor Size | 1/3inch CMOS Image Sensor |
| Mount | M12 |
| Focal Length [mm] |
1.9mm |
| Back Focal Length [mm] | 3.75mm |
| Aperture |
F.no 2.5 |
| Field of View Diagonal [°] | 182° |
|
Field of View Horizontal [°] |
158° |
| Field of View Vertical [°] | 87° |
| Distortion [%] | 19% (MAX) |

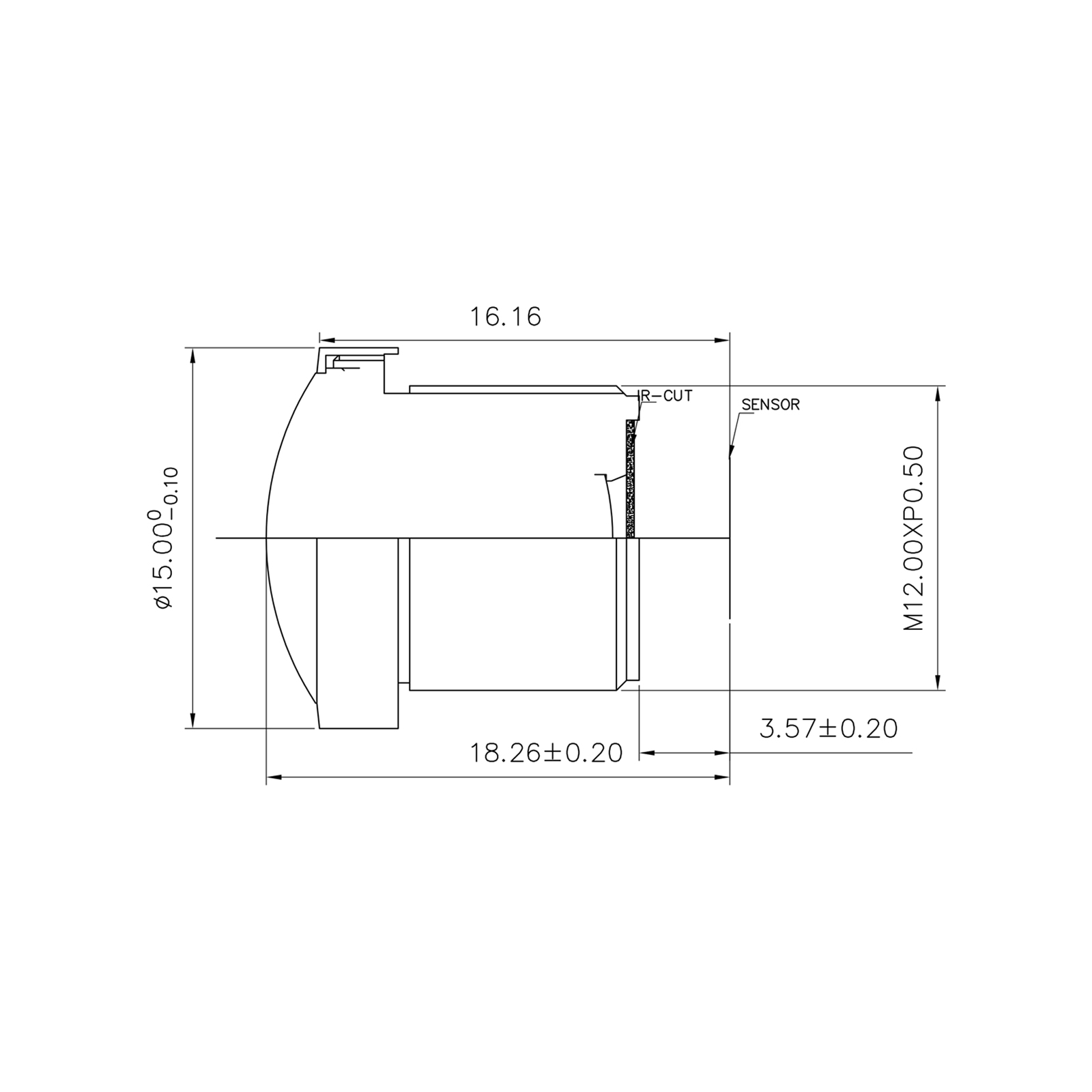

| Total Track Length [mm] | 18.26mm |
| Dimensions | φ15mm × 14.69mm |
| Optical Filter Type | 650nm Filter (Can be replaced with other) |
| Operation Temperature | -40℃ ~ 80℃ |
| Storage Temperature | -40℃ ~ 100℃ |
