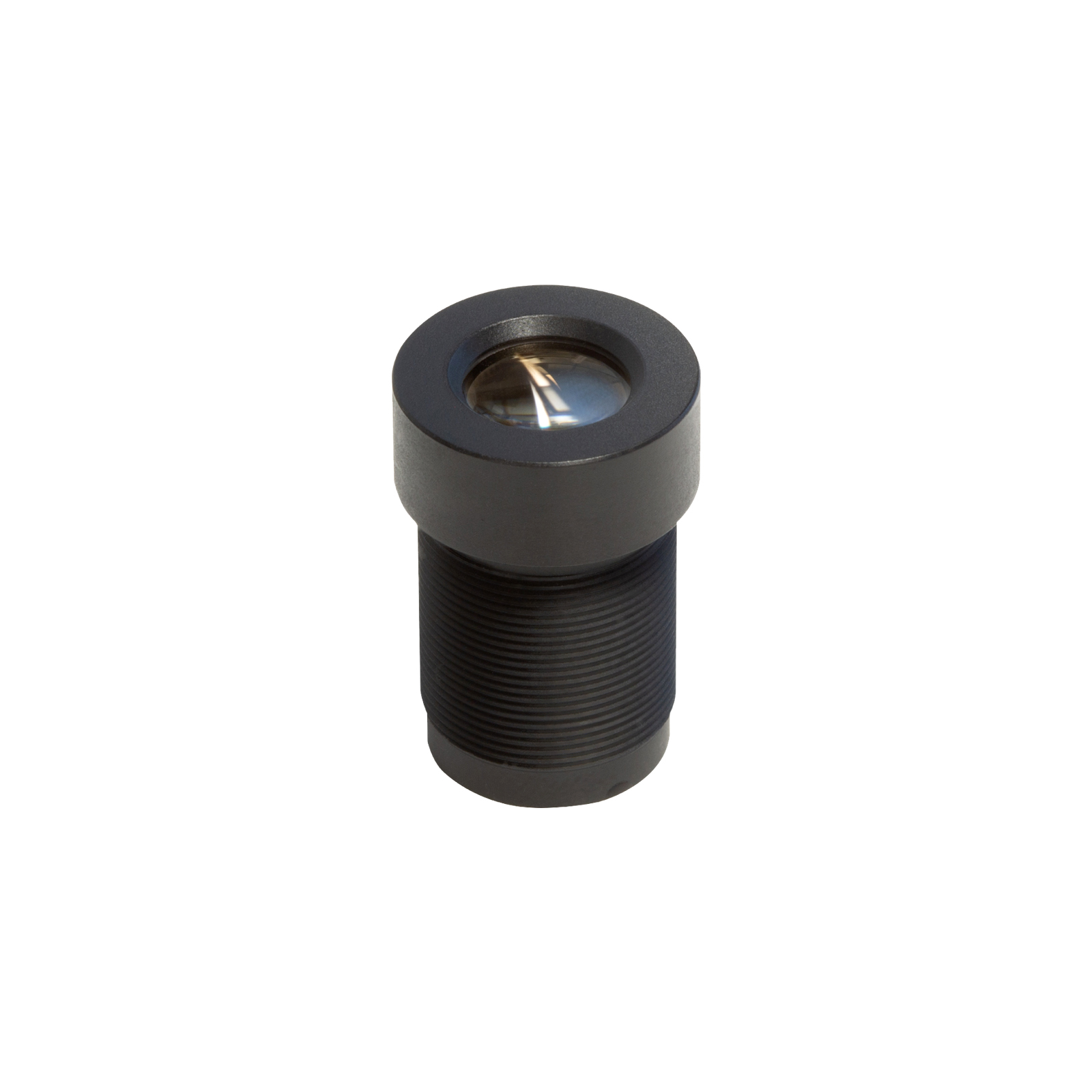

RHL38808-03 is a 3 MP 8mm M12 lens, which can be used in a variety of M12 mounts, and provides a 42° diagonal field of view on 1/3-inch sensors. This M12 lens is a F/1.8 large aperture lens with more light intake, which results in brighter images and a more dramatic depth of field effect.The M12 lens has a total track length of 25mm and a -2.8% lower distortion rate, which makes it suitable for security camera, surveillance camera, industrial inspection and other products.
If you have other requirements, welcome to contact us, our Optical Engineers will provide the most suitable Lens for your requirements.
| Resolution | 3MP |
| Sensor Size | 1/3inch CMOS Image Sensor |
| Mount | M12 |
| Focal Length [mm] |
8mm |
| Back Focal Length [mm] | 7.8mm |
| Aperture |
F.no 1.8 |
| Field of View Diagonal [°] | 42° |
|
Field of View Horizontal [°] |
31° |
| Field of View Vertical [°] | 24° |
| Distortion [%] | -2.8% (MAX) |
| Minimum object distance [mm] | - |
| Total Track Length [mm] | 25mm |
| Optical Filter Type | 650nm Filter (Can be replaced with other) |
| Dimensions | φ14mm × 21mm |
