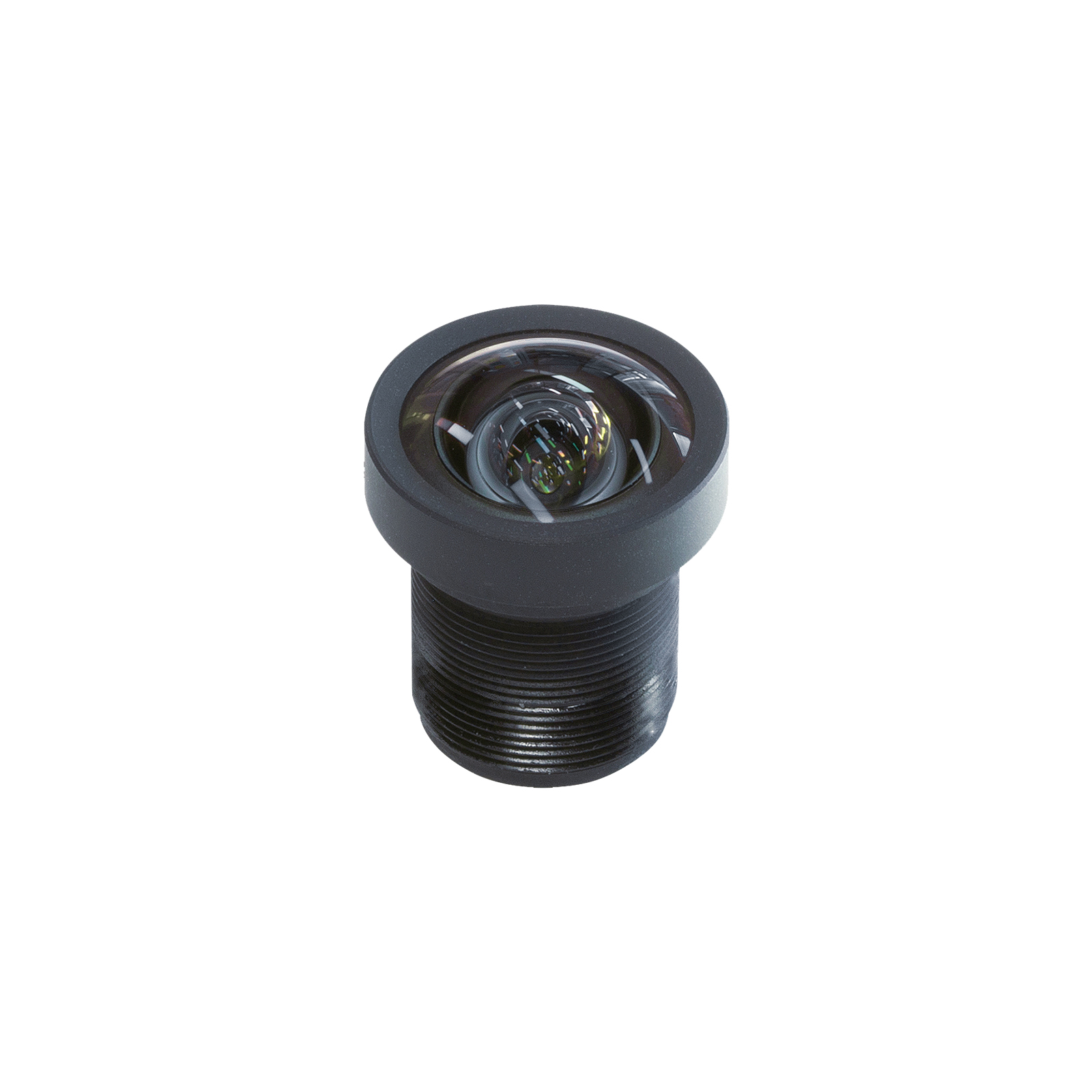

YXF2Y006A1 is a 4MP 3.97mm M12 lens that fits a variety of M12 Mount and provides a 106° diagonal field of view on a 1/2.7-inch sensor. This M12 lenses is also a F/2 large aperture lens, it has more light intake, it can bring brighter images, more significant depth of field effect. This M12 lenses is ideal for surveillance, security camera and more.
If you have other requirements, welcome to contact us, our Optical Engineers will provide the most suitable Lens for your requirements.
| Resolution | 4MP |
| Sensor Size | 1/2.7inch CMOS Image Sensor |
| Mount | M12 |
| Focal Length [mm] |
3.97mm |
| Back Focal Length [mm] | 5.25mm |
| Aperture |
F.no 2.0 |
| Field of View Diagonal [°] | 106° |
|
Field of View Horizontal [°] |
89.5° |
| Field of View Vertical [°] | 48° |
| Distortion [%] | -36% (MAX) |
| Total Track Length [mm] | 22.55mm |

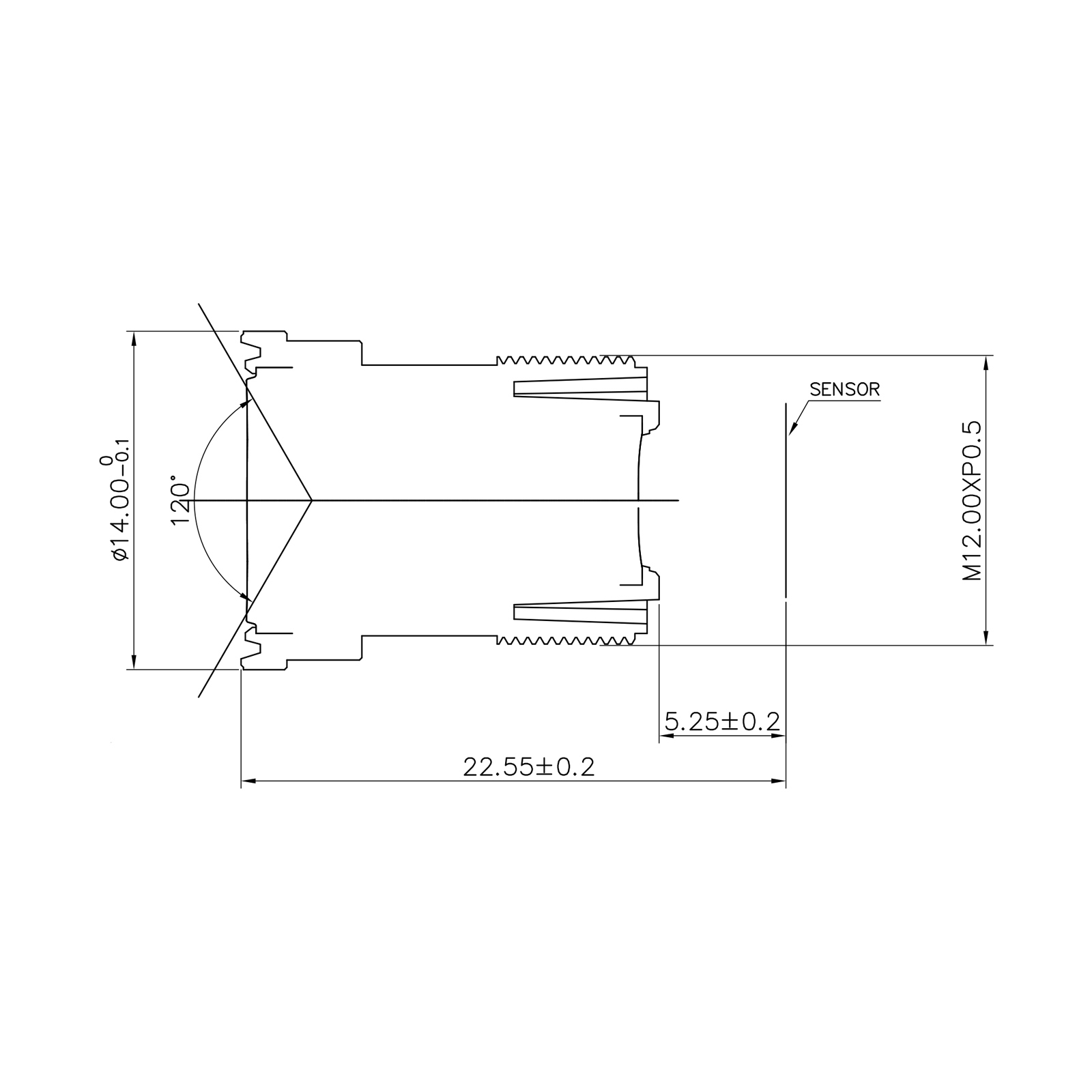

| Dimensions | φ14mm × 17.30mm |
| Optical Filter Type | NO-IR Filter (Can be replaced with other) |
| Operation Temperature | -30℃ ~ 75℃ |
| Storage Temperature | -40℃ ~ 85℃ |
