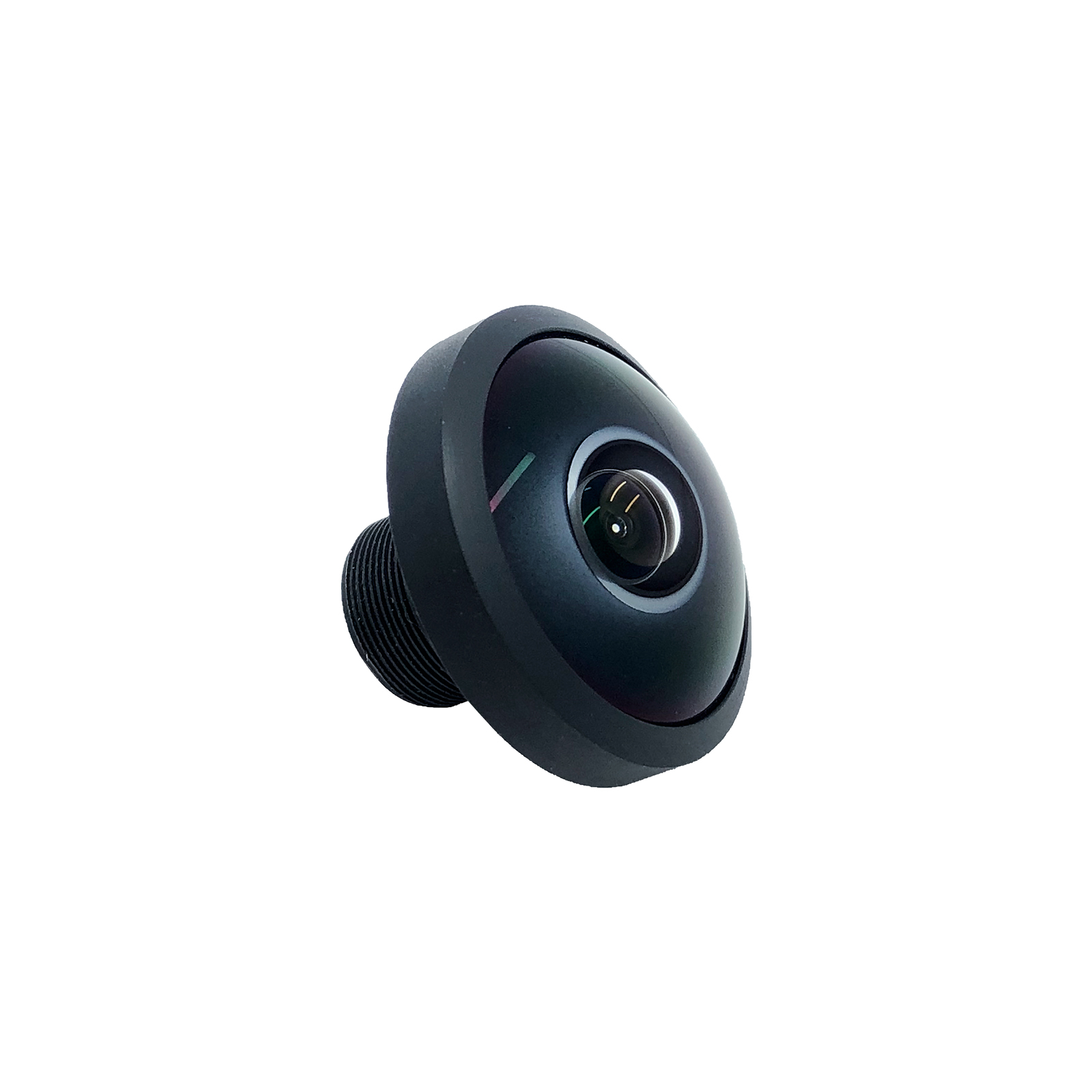

YXF5Y040A6 is a 4MP Wide Angle 0.93mm M12 Lens, which can be adapted to a variety of M12 mounts and it provides a 190° diagonal FOV on a 1/3-inch sensor. This M12 wide angle lens is also a F.no 2.0 large aperture lens, it has more light intake, it can bring brighter images, more significant depth of field effect.
With a total track length of 22.67mm and a low -4.2% aberration rate, this M12 Wide Angle Lens combines a 190° wide field of view and a large 2.0 aperture, making this M12 Wide Angle Lens ideal for drones, 360 panoramic camera, security cameras, automotive camera, sports camera, and more.
If you have other requirements, welcome to contact us, our Optical Engineers will provide the most suitable Lens for your requirements.
| Resolution | 4MP |
| Sensor Size | 1/3inch CMOS Image Sensor |
| Mount | M12 |
| Focal Length [mm] |
0.93mm |
| Back Focal Length [mm] | 1.72mm |
| Aperture |
F.no 2.0 |
| Field of View Diagonal [°] | 190° |
|
Field of View Horizontal [°] |
190° |
| Field of View Vertical [°] | 190° |
| Distortion [%] | -4.2% (MAX) |

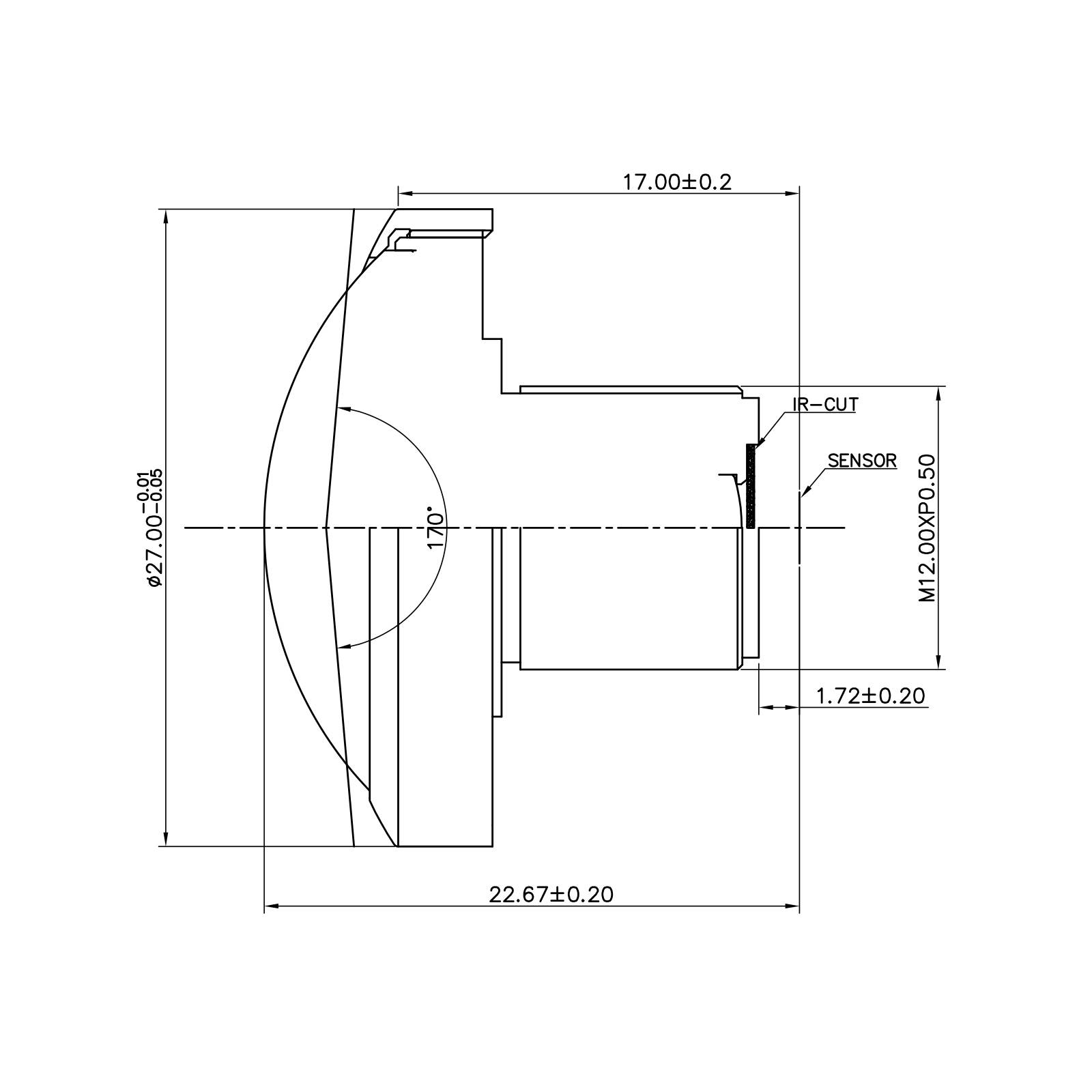

| Total Track Length [mm] | 22.67mm |
| Dimensions | φ27mm × 20.95mm |
| Optical Filter Type | 650nm Filter (Can be replaced with other) |
| Operation Temperature | -40℃ ~ 75℃ |
| Storage Temperature | -40℃ ~ 85℃ |
