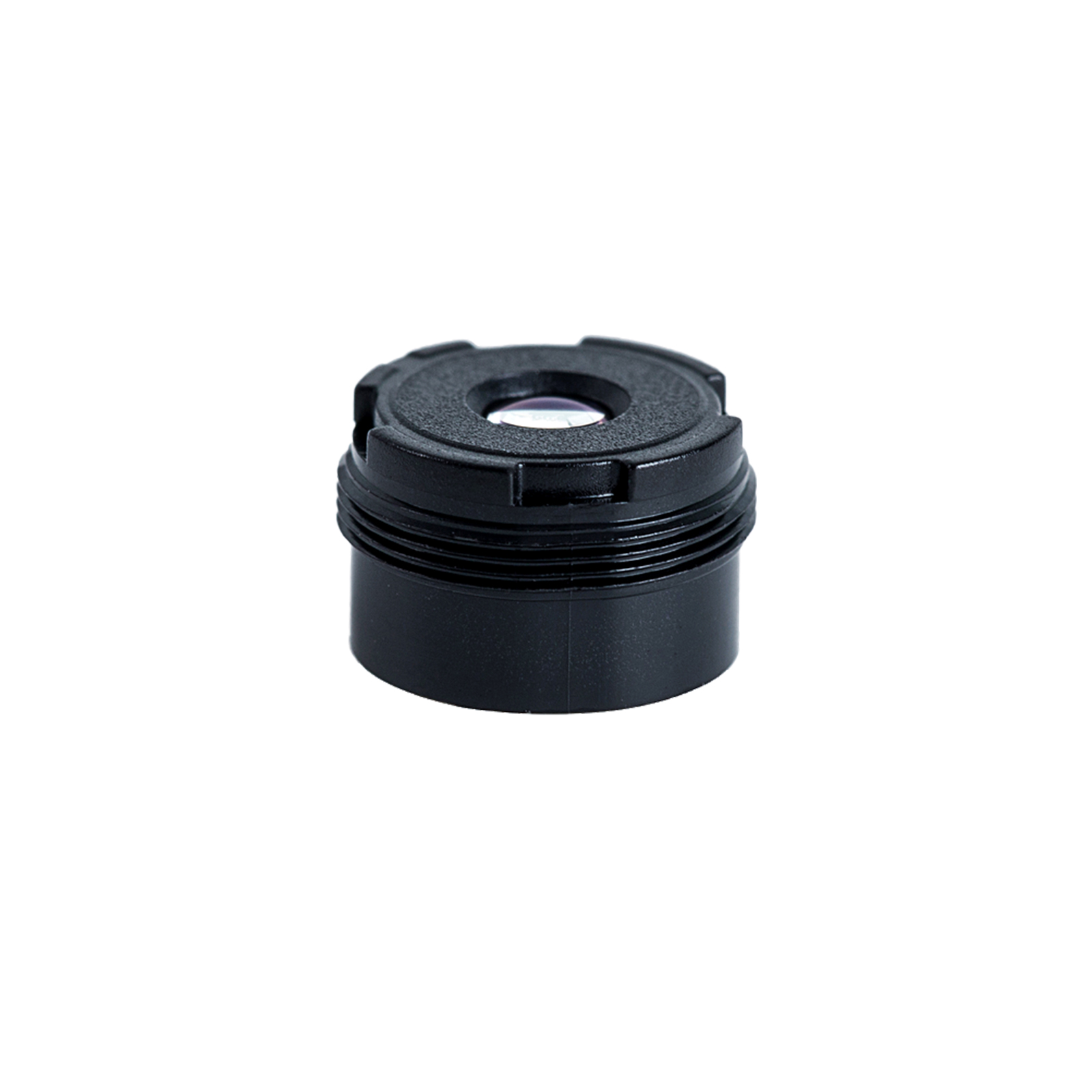

YXF4Y001A1 is a M6 Lens for Raspberry Pi Camera Module, it can be adapted to a variety of M6 mount, widely used in 1/4 inch OV5647 and IMX219 Raspberry Pi Camera Module. This Raspberry Pi lens has F.no 2.4 large aperture, it has more light intake, it can bring brighter images, more significant depth of field effect. This Raspberry Pi M6 Lens has a large 119.9° angle of view which captures a wider image.
This Raspberry Pi OV5647 camera module lens is ideal for robotic vision, drone, agricultural inspection, medical inspection, production monitoring, security surveillance, Timelapse camera and more.
If you have other requirements, welcome to contact us, our Optical Engineers will provide the most suitable Lens for your requirements.
| Resolution | 4MP |
| Sensor Size | 1/4inch CMOS Image Sensor |
| Mount | M6 |
| Focal Length [mm] |
1.79mm |
| Back Focal Length [mm] | - |
| Aperture |
F.no 2.4 ± 5% |
| Field of View Diagonal [°] | 73.9° |
|
Field of View Horizontal [°] |
119.9° |
| Field of View Vertical [°] | 92.4° |
| Distortion [%] | -11.5% |
| Total Track Length [mm] | 5.2 ± 0.2mm |

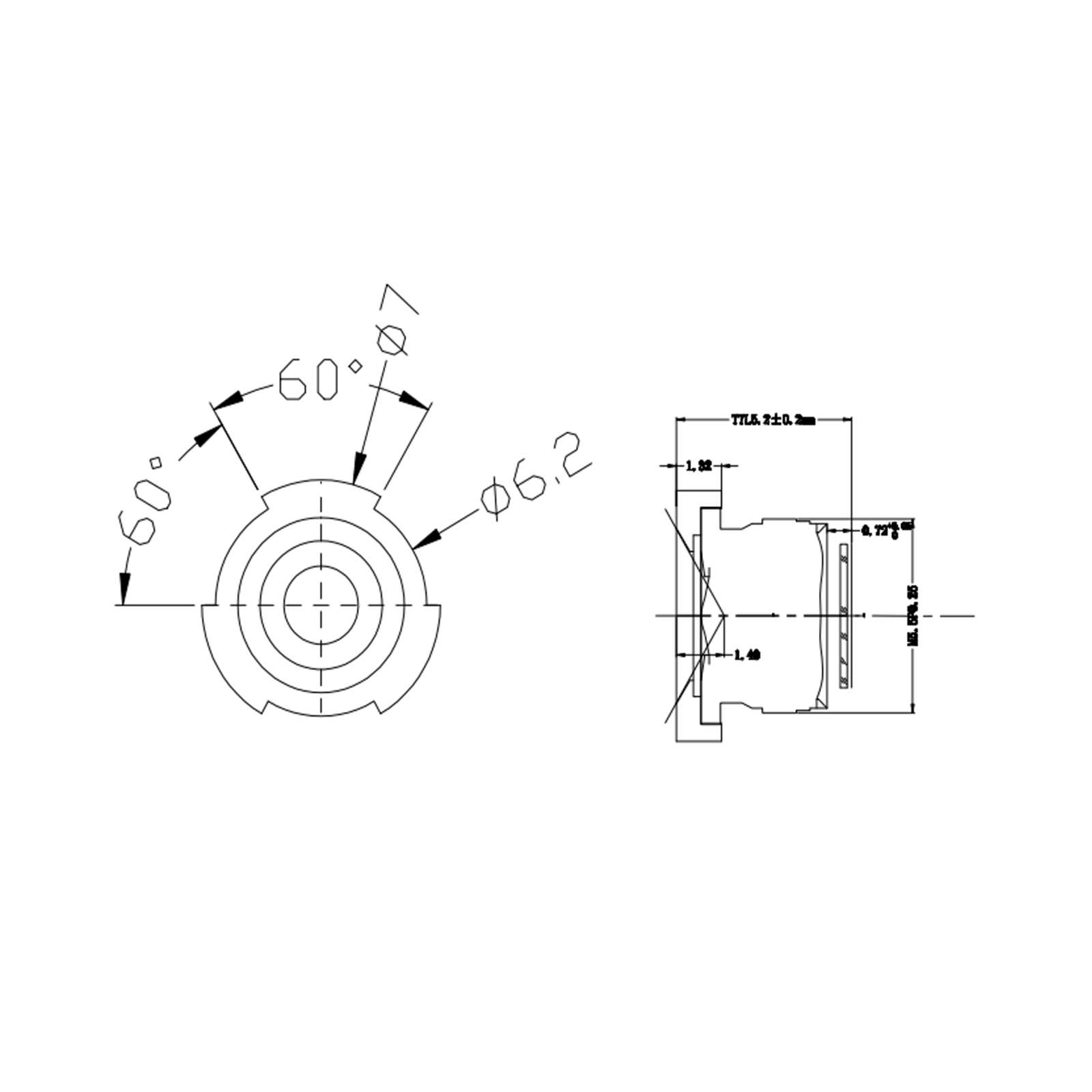

| Dimensions | φ7mm × 4.48mm |
| Optical Filter Type | 650nm Filter (Can be replaced with other) |
| Operation Temperature | -30℃ ~ 80℃ |
| Storage Temperature | -30℃ ~ 80℃ |
