2MP 100 Degree PIR Detector Camera HDR Low Light OV2735 MIPI Camera Module

Product Information

YXF2735M12-69-100 is a 2MP MIPI camera module that uses OmniVision OV2735 CMOS HD image sensor. It supports full-frame image output at 30fps by MIPI or DVP interfaces and 720p at 60fps.

OV2735 camera module operates at 30 frames per second and supports HDR, staggered mode HDR, and synchronized mode for dual camera configuration, making it an ideal choice for security cameras and HD analog camera.

OV2735 HDR camera module also supports low power modes, defect pixel correction, noise reduction, and employs technology to reduce or eliminate common lighting or electrical image contamination, ensuring clean and stable HD images.

Additionally, OV2735 HDR camera module can be used as a PIR detector camera module with low-light sensitivity, high frame rates and HDR capabilities. It can also be configured with an IR-CUT lens, making it perfect for security surveillance and automation applications.

OV2735 HDR MIPI camera module is widely used in PIR detectors, security camera, monitoring, automobile data recorder, object recognition, barcode scanning, etc.

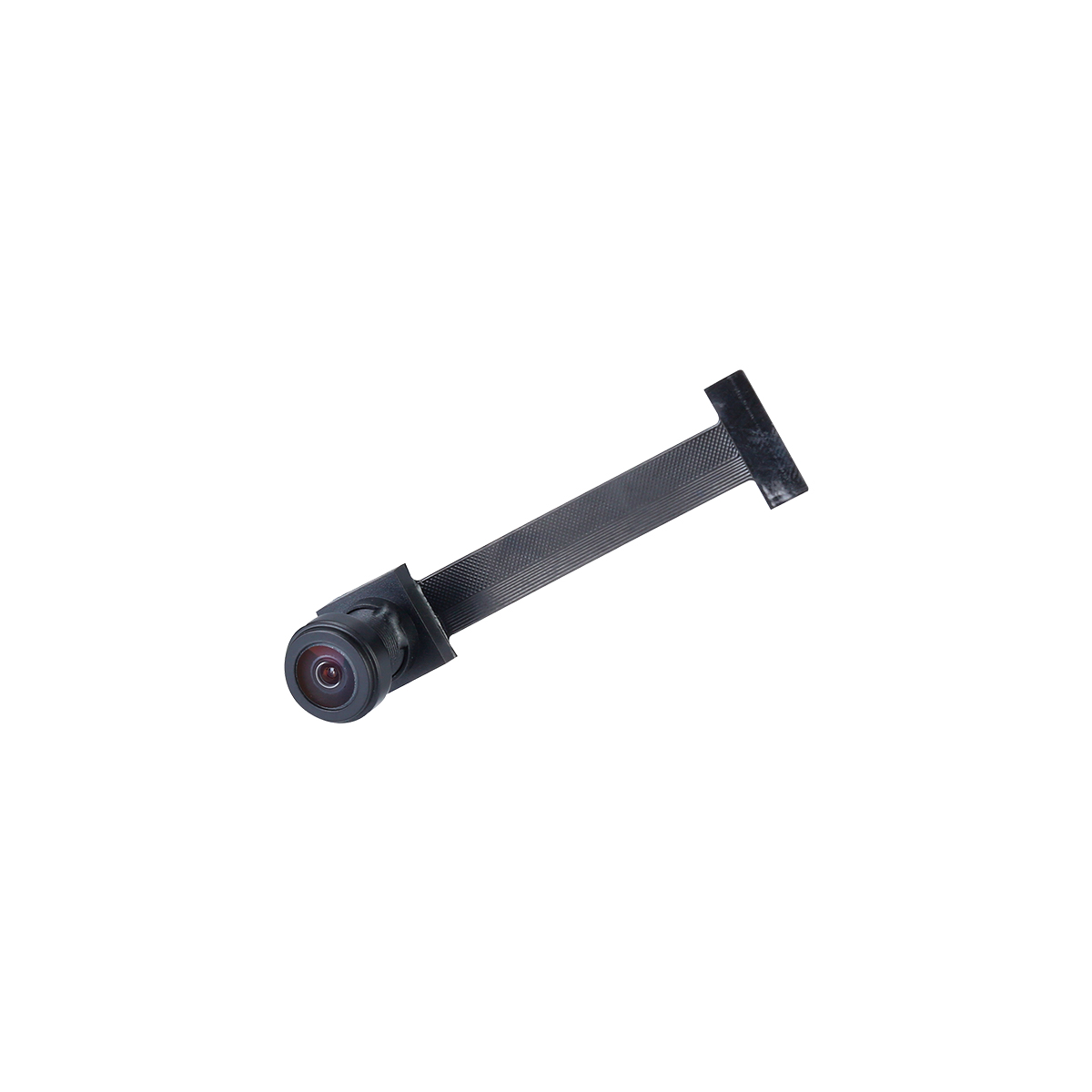

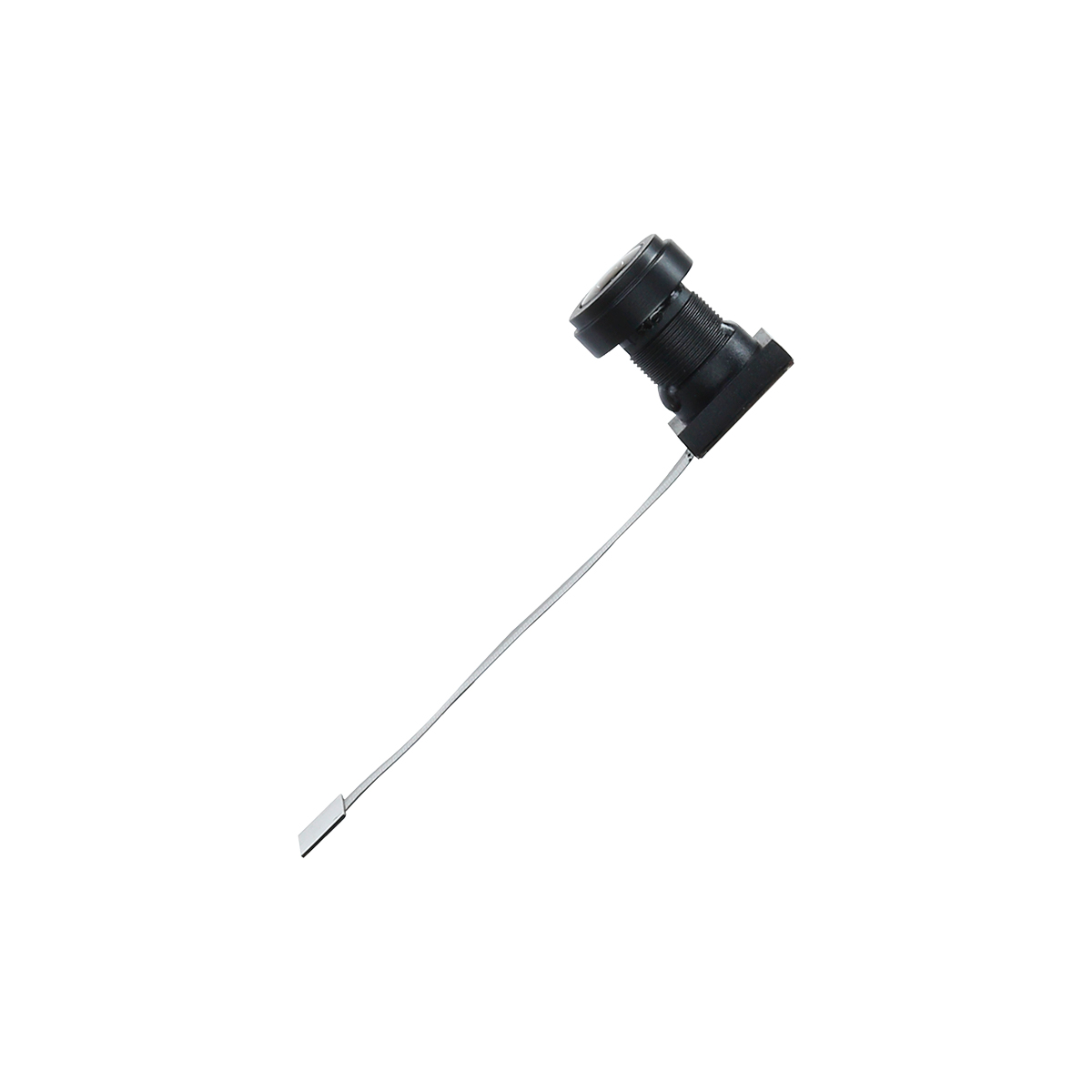

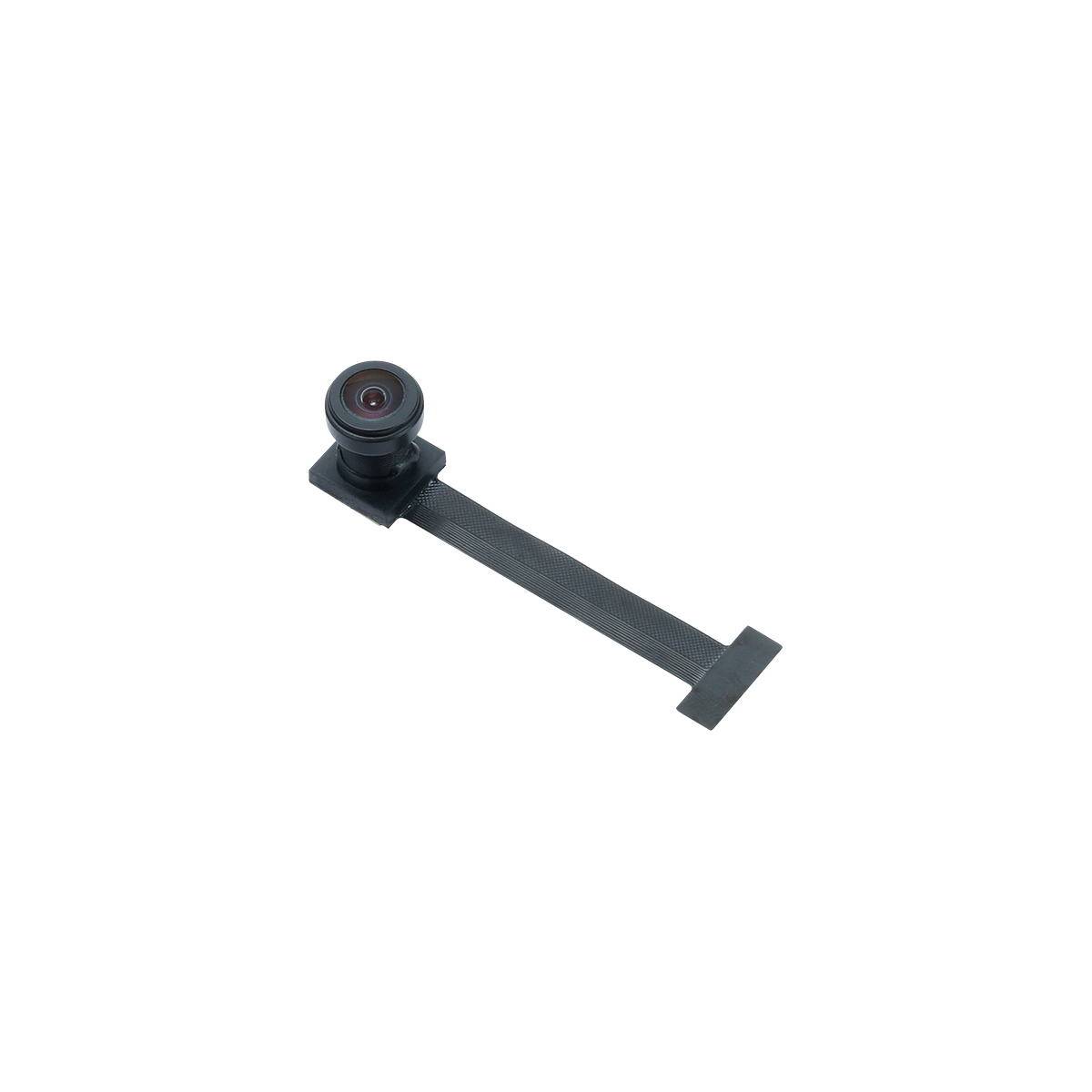

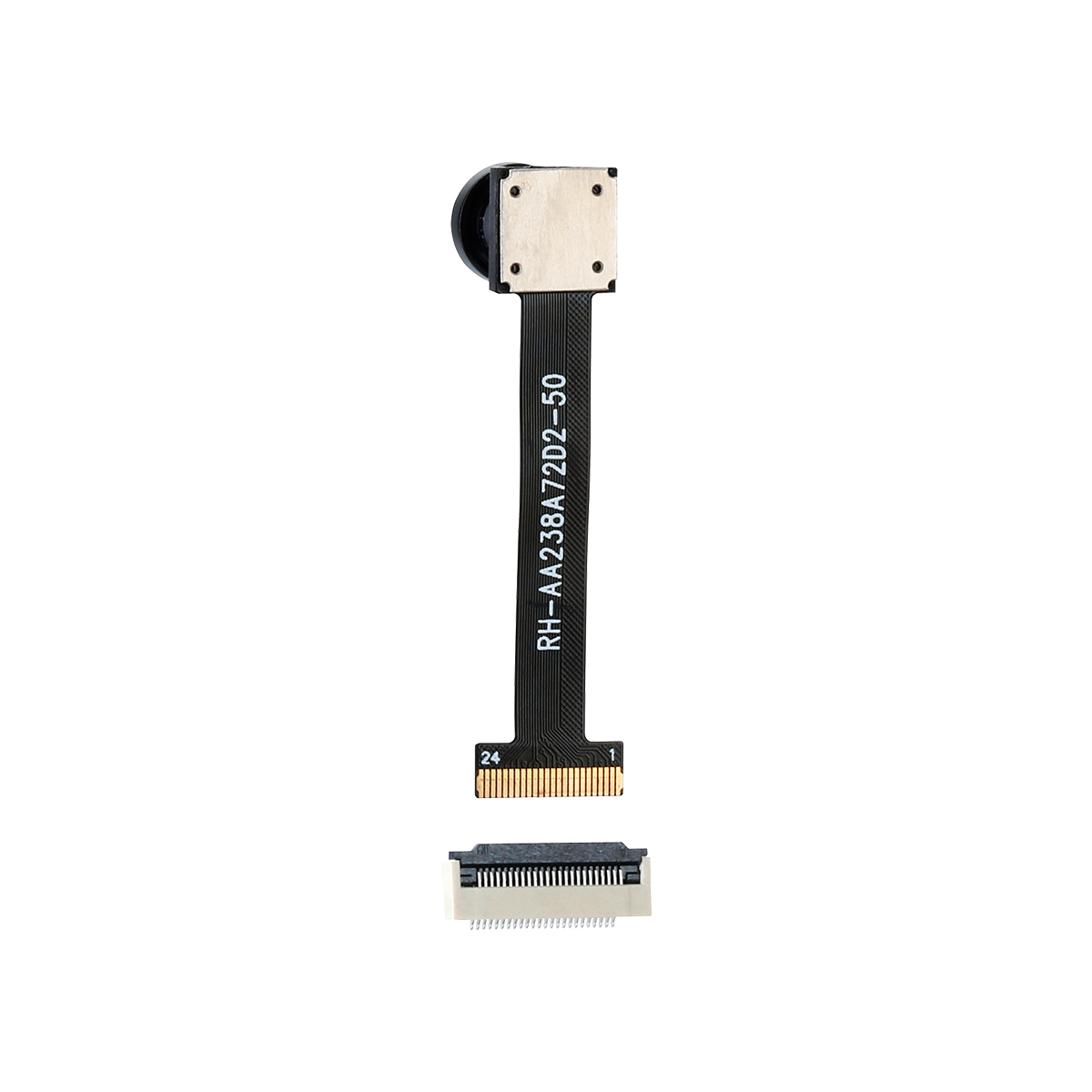

The dimensions of the OV2735 MIPI camera module are 13.2×190×17.42mm, with a diagonal field of view of 100º and a 650nm filter (customizable to an IR-CUT lens).  Moreover, we can customise camera module Size, PIN Definition, FOV, Focal Length, Filter and so on according to your needs.

OmniVision MIPI Camera Module - OV2735 - Specification

Camera Module Main Core Technology

Best user experience based on High Customization, High Performance, High definition and Stability


YXF TECH has high-precision design technology and large-scale production capacity for lenses and PCB, the core components of camera module. We are directly cooperating and purchasing with Sensor Manufacturer (OMNIVISION, SONY, ONSEMI, SAMSUNG, etc.), and we have access to Original Brand New Sensor, and technical support from Sensor Manufacturers.
Based on our high-resolution lenses technology, optimized PCB design technology, camera module integration and packaging technology, and highly customized services, we could provide you with camera module with various features and functions.

Company Profile

YXF has been focusing on the research and manufacturing of camera modules and optical lenses, R&D and providing advanced and optimal solutions for various industries.

"Continuous innovation" is the central philosophy of YXF. Following this philosophy, YXF has successfully provided high-quality products and customized vision solutions for partners in industries such as consumer electronics, smart home, automotive, robotics, medical devices, surveillance, water and electricity meter monitoring, video doorbell, 3D scanner, PIR camera, AI, AR&VR, and educational devices.

Capacity of Manufacturing Base

YXF manufacturing base is designed and constructed according to industry safety standards and in accordance with the requirements of ISO9001, ISO 14001, QC080000 Quality Management and Environmental Management production standards.

Our factory has an area of 2,500 m², with a thousand-level dust-free room, hundred-level workbench, automatic production line and manual production line. With a monthly production capacity of about 600k and an annual production capacity of 7000k, YXF has invested heavily in intelligent manufacturing to achieve efficient and high quality mass production. Whether it's camera module innovation and R&D, or mass production, you can always trust us.

Quality Control

YXF has implemented a strict quality control program during the production process. Product quality inspection must be done through eight processes, including IQC, IPQC, FQC, OQC, etc., in strict accordance with the quality policy and control of product quality.

In order to provide our partners with innovative and customized best vision solutions and ensure product quality above industry standards, we have established a thousand-level dust-free room, hundred-level workbench, automated production line, senior R&D engineers and cutting-edge manufacturing equipment to control quality and improve efficiency from the source. We provide professional and best camera module OEM solutions to our partners.

FAQ
