5MP 91 Degree PIR Detector Camera IR-CUT Lens Low Light OV5640 MIPI Camera Module

Product Information

YXF-5640IRCUT-125 is a 5MP MIPI camera module equipped with an IR-CUT lens, using OMNIVISION OV5640 CMOS image sensor. It supports a maximum resolution of 2592x1944 pixels at 15fps, 1280x960 pixels at 45fps, 720p at 60fps, and 90fps for VGA.

OV5640 DVP camera module features an IR-CUT lens that automatically switches filters based on different lighting conditions, enhancing the camera's sensitivity and image clarity, resulting in more realistic and detailed images.

OV5640 offers high sensitivity, low noise, low light and anti-shake performance, making it ideal for shooting in low-light environments. Additionally, OV5640 IR-CUT lens camera module provides automatic image control functions such as auto exposure control, auto white balance, and automatic band-pass filter, enabling the 5MP high-performance MIPI camera module to capture more detailed and clearer images.

OV5640 IR-CUT lens camera module is also a PIR detector camera module, with low-light sensitivity and anti-shake features, making it an excellent choice for security and automation applications.

Thanks to its high sensitivity, low-light performance, low noise, anti-shake capabilities, AEC, AGC, and other features,  OV5640 Low Light High Sensitivity camera module is widely used in PIR detectors, security camera, surveillance, facial recognition, object detection, robotics, and industrial camera.

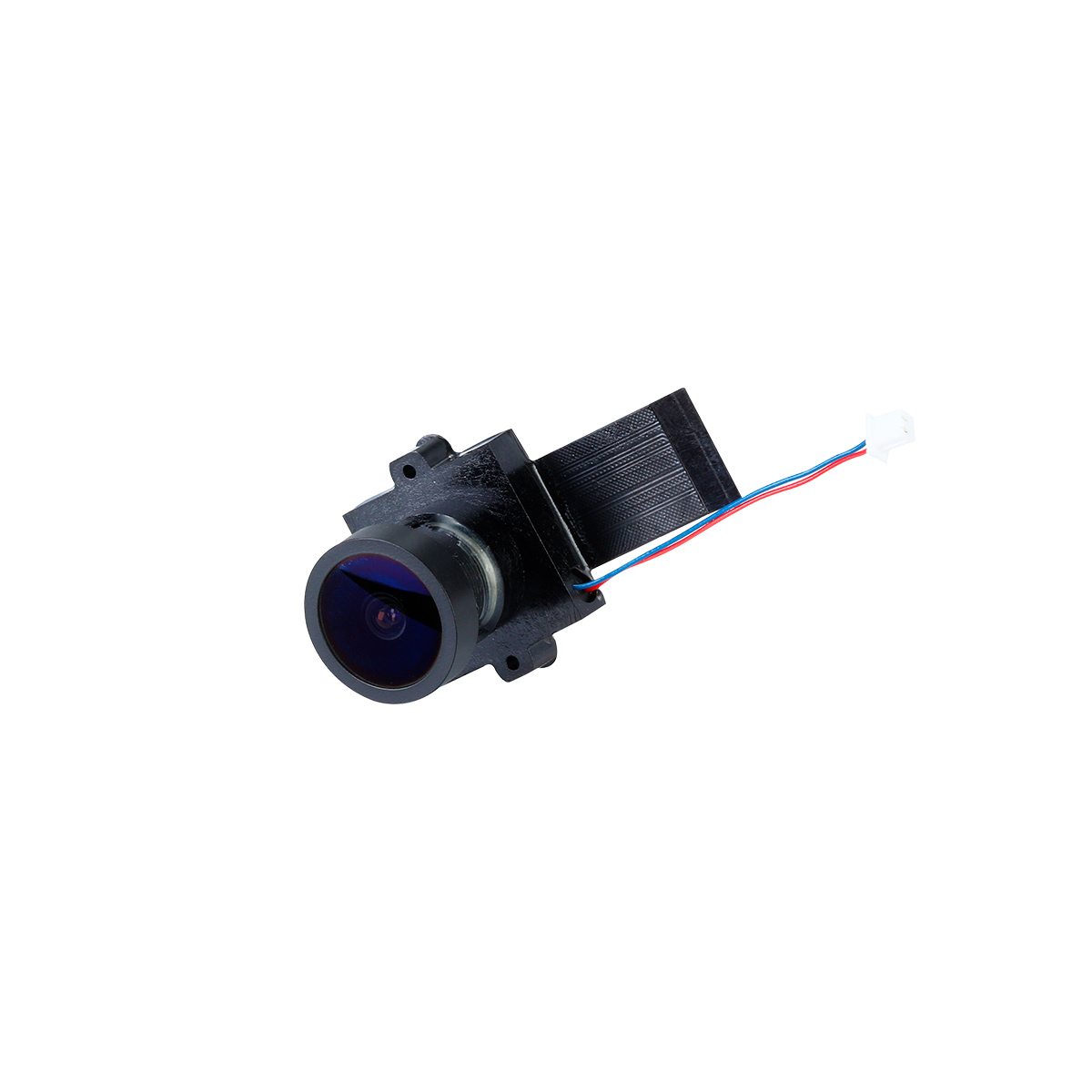

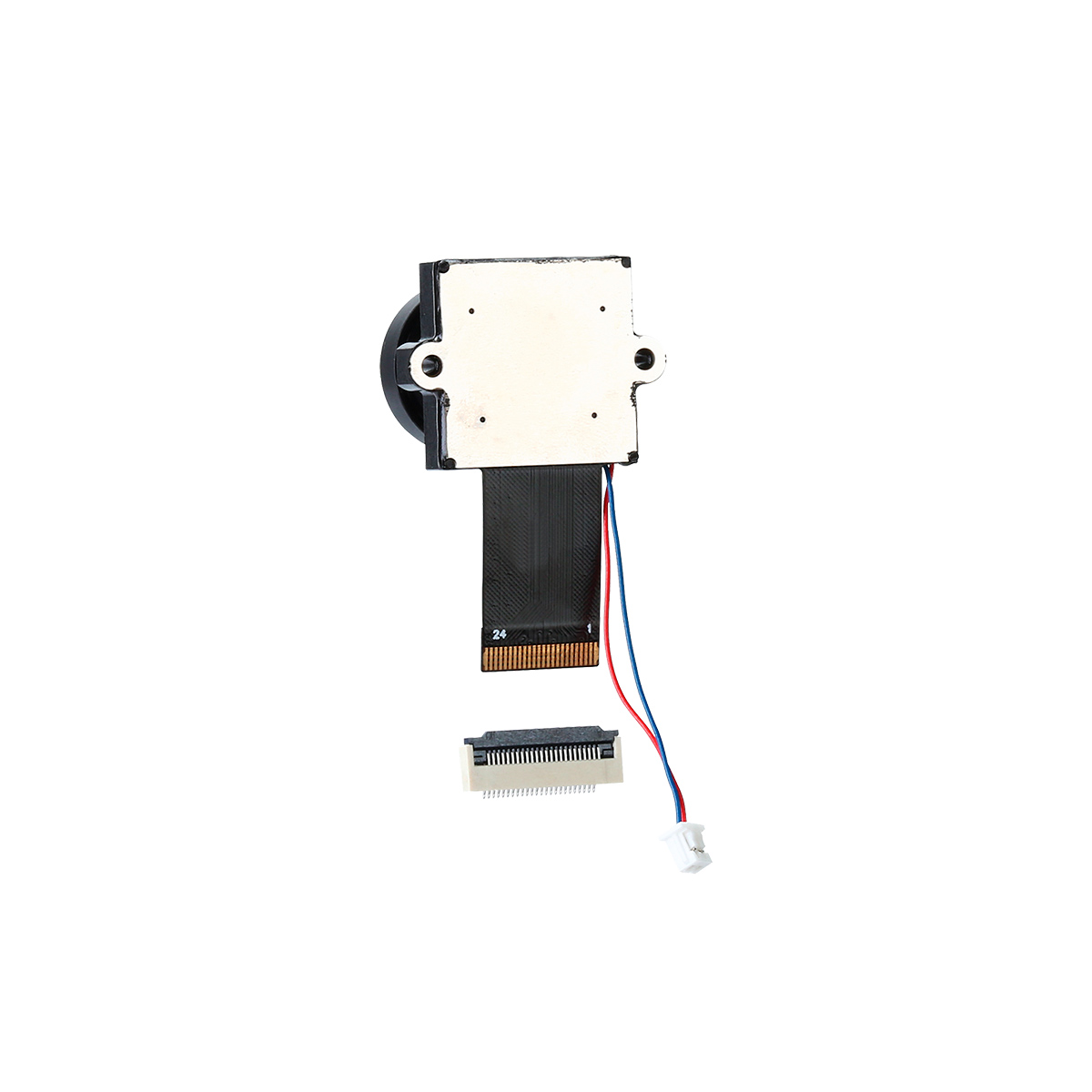

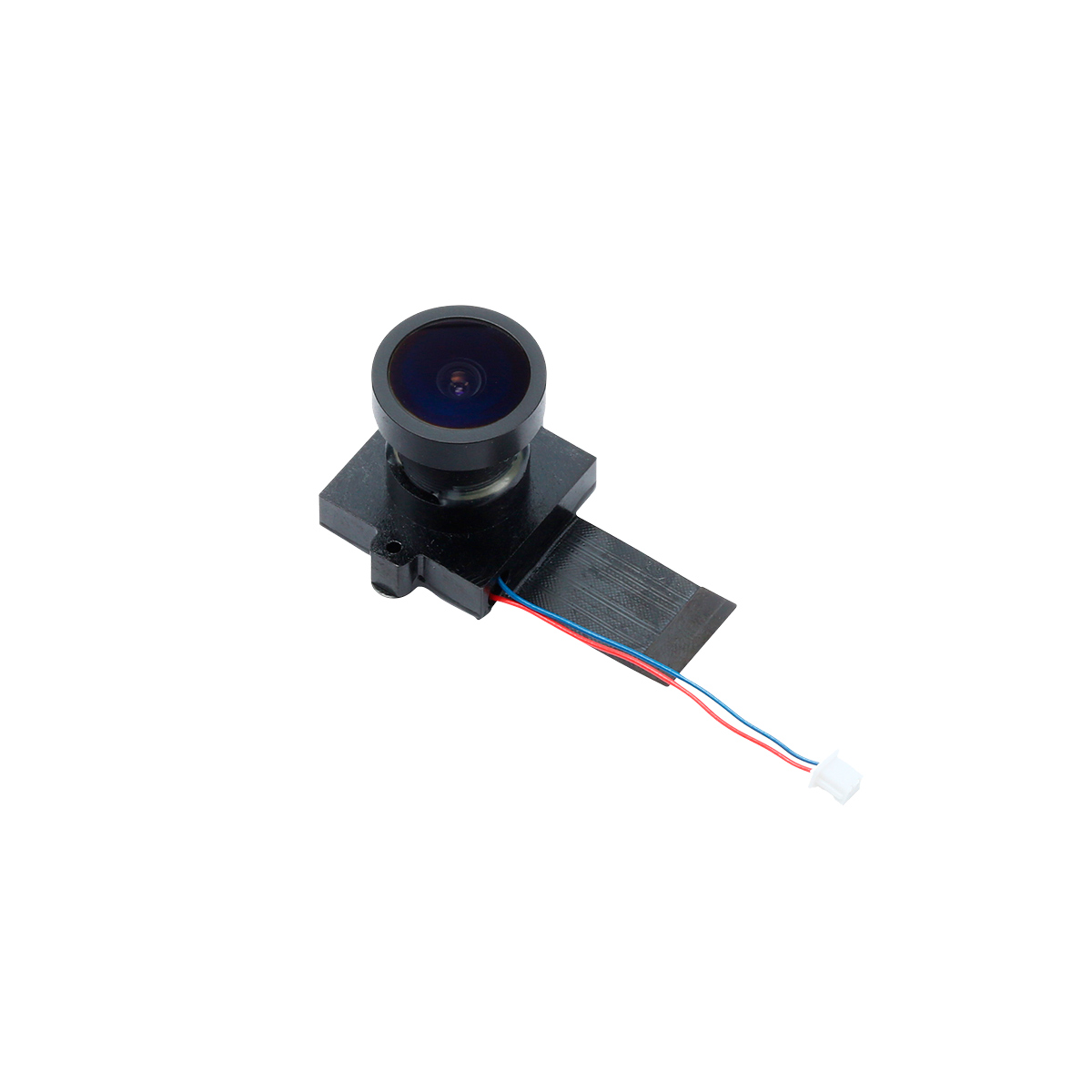

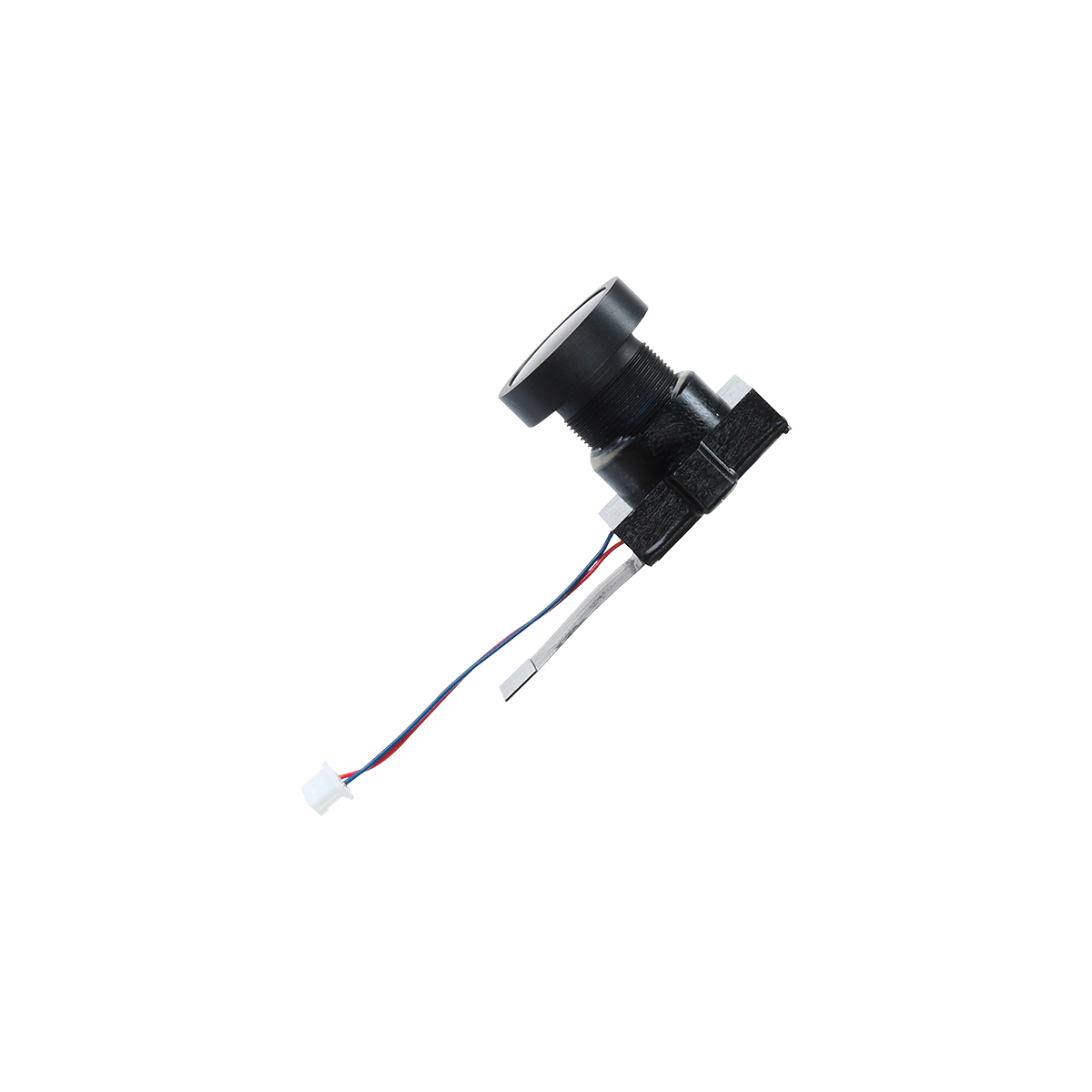

OV5640 MIPI camera module size is 20 x 40 x 22.4mm, diagonal viewing angle is 91º, with a IR-CUT filter lens. Moreover, we can customise camera module Size, PIN Definition, FOV, Focal Length, Filter and so on according to your needs.

OmniVision MIPI Camera Module - OV5640 - Specification

Camera Module Main Core Technology

Best user experience based on High Customization, High Performance, High definition and Stability


YXF TECH has high-precision design technology and large-scale production capacity for lenses and PCB, the core components of camera module. We are directly cooperating and purchasing with Sensor Manufacturer (OMNIVISION, SONY, ONSEMI, SAMSUNG, etc.), and we have access to Original Brand New Sensor, and technical support from Sensor Manufacturers.
Based on our high-resolution lenses technology, optimized PCB design technology, camera module integration and packaging technology, and highly customized services, we could provide you with camera module with various features and functions.

Company Profile

YXF has been focusing on the research and manufacturing of camera modules and optical lenses, R&D and providing advanced and optimal solutions for various industries.

"Continuous innovation" is the central philosophy of YXF. Following this philosophy, YXF has successfully provided high-quality products and customized vision solutions for partners in industries such as consumer electronics, smart home, automotive, robotics, medical devices, surveillance, water and electricity meter monitoring, video doorbell, 3D scanner, PIR camera, AI, AR&VR, and educational devices.

Capacity of Manufacturing Base

YXF manufacturing base is designed and constructed according to industry safety standards and in accordance with the requirements of ISO9001, ISO 14001, QC080000 Quality Management and Environmental Management production standards.

Our factory has an area of 2,500 m², with a thousand-level dust-free room, hundred-level workbench, automatic production line and manual production line. With a monthly production capacity of about 600k and an annual production capacity of 7000k, YXF has invested heavily in intelligent manufacturing to achieve efficient and high quality mass production. Whether it's camera module innovation and R&D, or mass production, you can always trust us.

Quality Control

YXF has implemented a strict quality control program during the production process. Product quality inspection must be done through eight processes, including IQC, IPQC, FQC, OQC, etc., in strict accordance with the quality policy and control of product quality.

In order to provide our partners with innovative and customized best vision solutions and ensure product quality above industry standards, we have established a thousand-level dust-free room, hundred-level workbench, automated production line, senior R&D engineers and cutting-edge manufacturing equipment to control quality and improve efficiency from the source. We provide professional and best camera module OEM solutions to our partners.

FAQ
