5MP 69 Degree Auto Focus OV5645 USB Camera Module

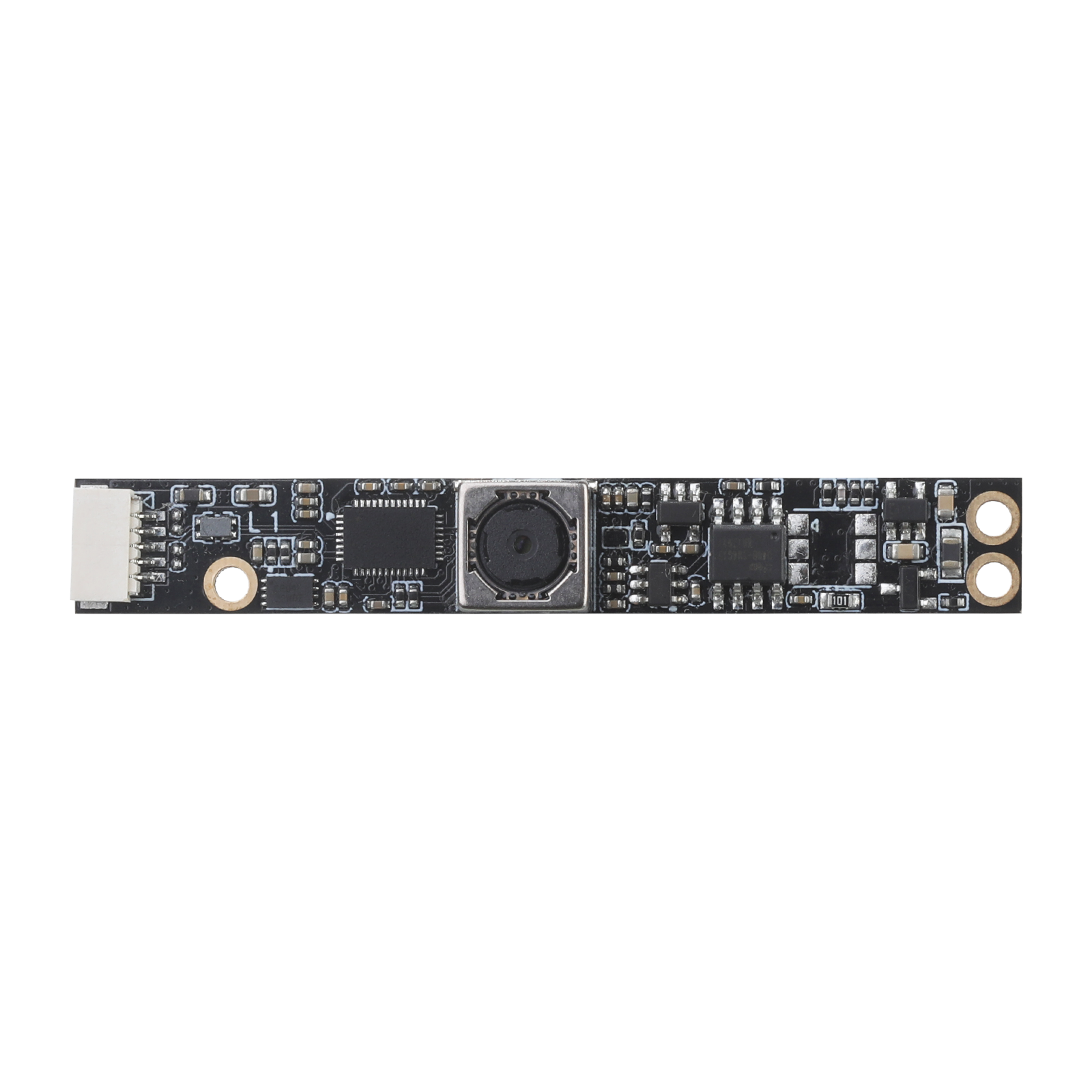

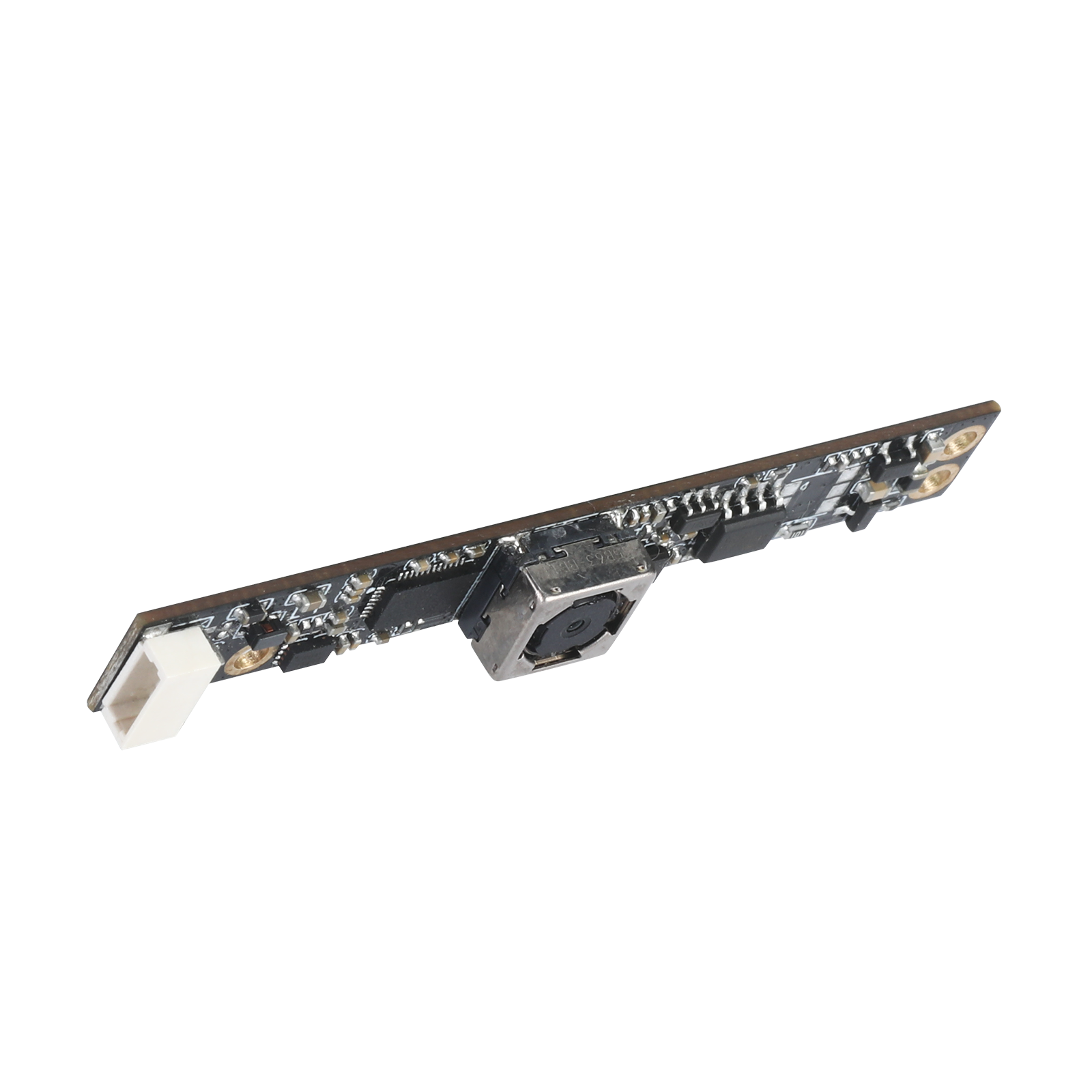

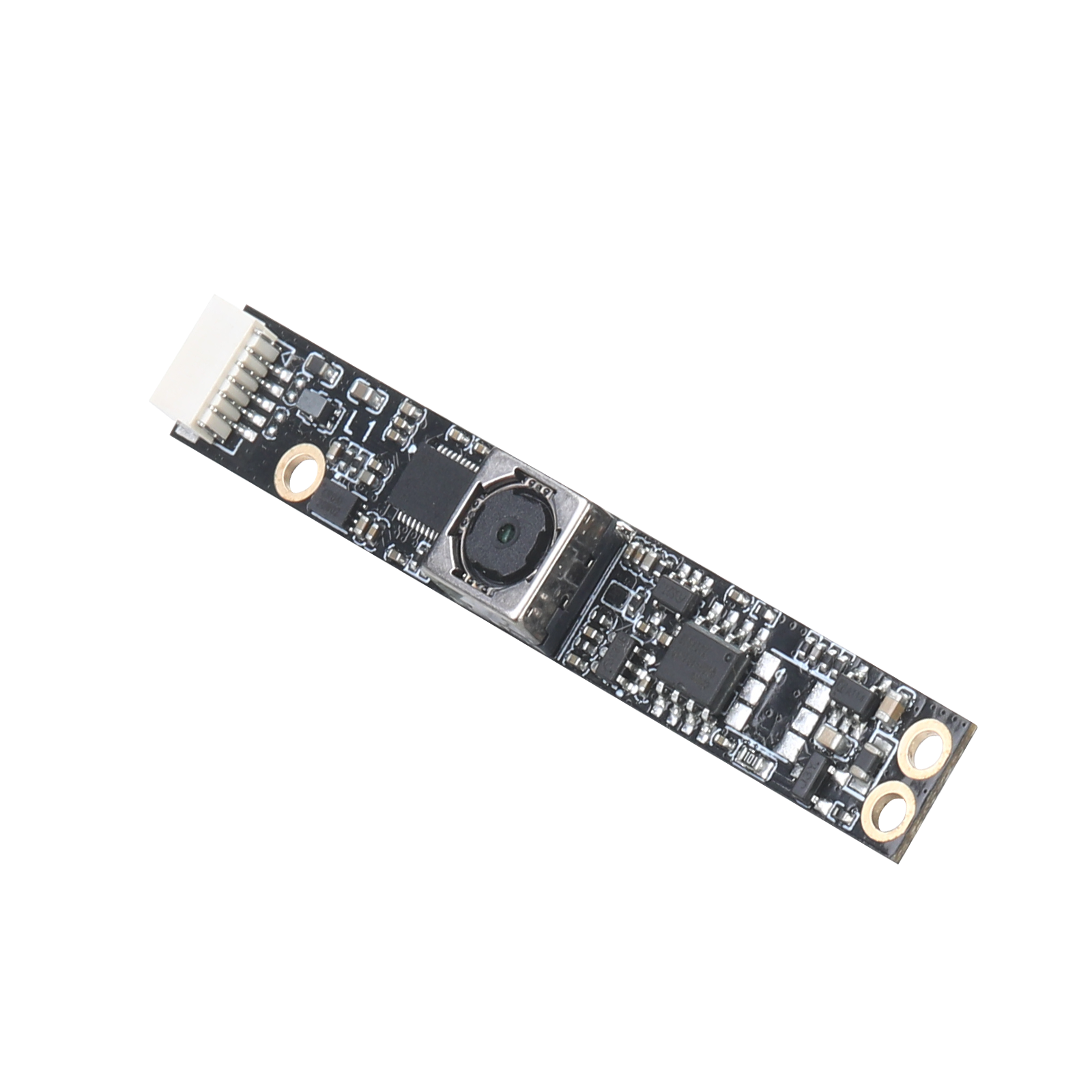

RH-US5MO45B-68 is 5MP Auto Focus USB camera module, which uses the OMNIVISION OV5645 sensor. This USB camera module has an autofocus function that achieves HD images by autofocusing when photographing objects at different distances.

OV5645 Autofocus USB Camera Module supports 15 fps stabilized output at 2592 x 1944 resolution and 30 fps stabilized output at 1920x1080 resolution.OV5645 USB Camera Module is equipped with OmniBSl+r technology, which provides high performance with high sensitivity, low crosstalk, and low noise, resulting in superior HD images. It is perfect for PC camera, cell phone camera, surveillance, digital still camera and other products.

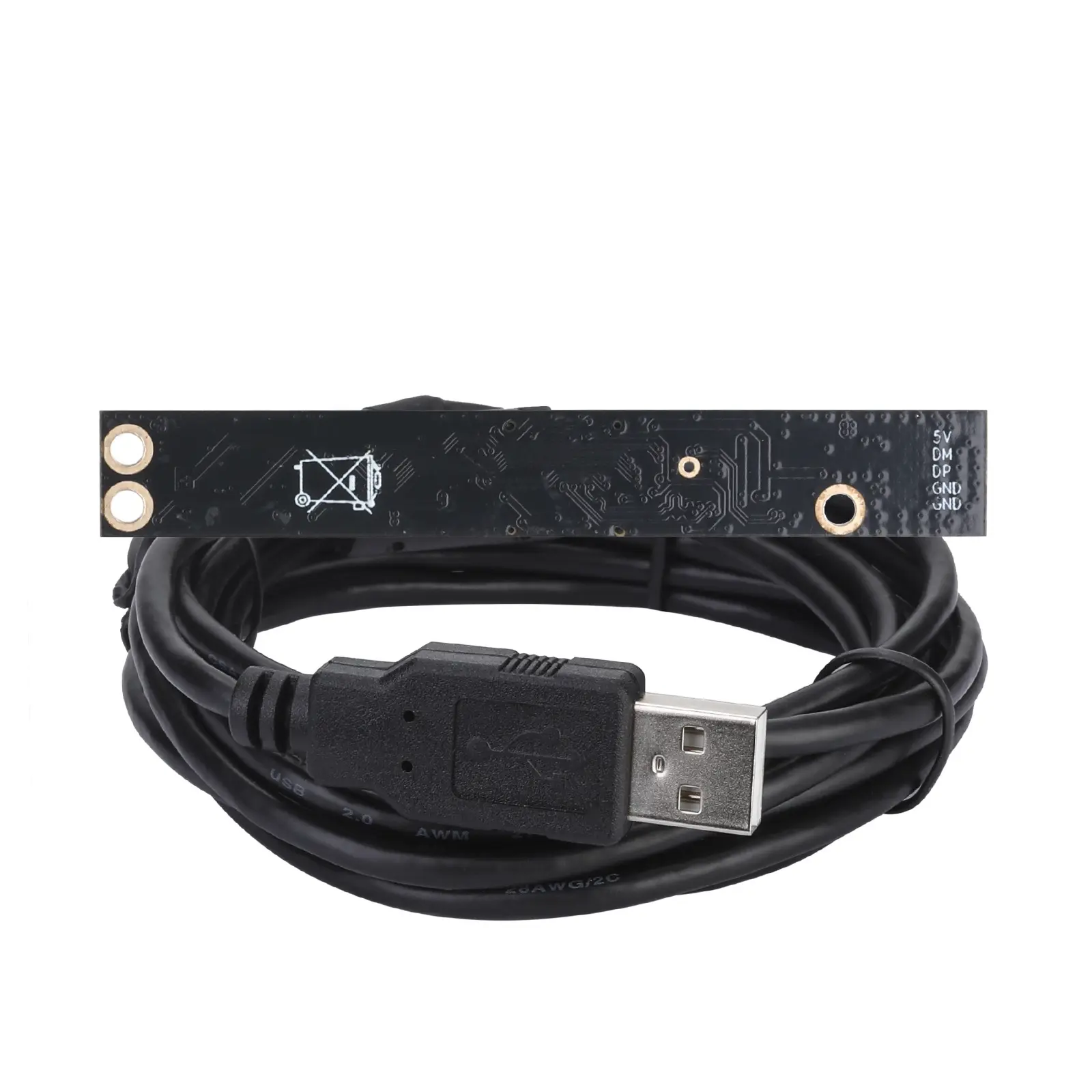

OV5645 Auto Focus USB camera module supports USB 2.0 interface and is a plug and play camera. It is compatible with Windows and Linux and Mac OS systems. It measures 9x62x5.63mm, diagonal viewing angle is 68.7º, filter is 650nm, and it can be customized with size, field of view, focal length, filter and others according to your needs.

OMNIVISION USB Camera Module - OV5645 - Specification

Camera Module Main Core Technology

Best user experience based on high customization, high resolution, high definition and stability


YXF TECH has high-precision design technology and large-scale production capacity for lenses and PCB, the core components of camera module. We are directly cooperating and purchasing with Sensor Manufacturer (OMNIVISION, SONY, ONSEMI, SAMSUNG, etc.), and we have access to Original Brand New Sensor, and technical support from Sensor Manufacturers.
Based on our high-resolution lenses technology, optimized PCB design technology, camera module integration and packaging technology, and highly customized services, we could provide you with camera module with various features and functions.

YXF has been focusing on the research and manufacturing of camera modules and optical lenses, R&D and providing advanced and optimal solutions for various industries.

"Continuous innovation" is the central philosophy of YXF. Following this philosophy, YXF has successfully provided high-quality products and customized vision solutions for partners in industries such as consumer electronics, smart home, automotive, robotics, medical devices, surveillance, water and electricity meter monitoring, video doorbell, 3D scanner, PIR camera, AI, AR&VR, and educational devices.

YXF manufacturing base is designed and constructed according to industry safety standards and in accordance with the requirements of ISO9001, ISO 14001, QC080000 Quality Management and Environmental Management production standards.

Our factory has an area of 2,500 m², with a thousand-level dust-free room, hundred-level workbench, automatic production line and manual production line. With a monthly production capacity of about 600k and an annual production capacity of 7000k, YXF has invested heavily in intelligent manufacturing to achieve efficient and high quality mass production. Whether it's camera module innovation and R&D, or mass production, you can always trust us.

YXF has implemented a strict quality control program during the production process. Product quality inspection must be done through eight processes, including IQC, IPQC, FQC, OQC, etc., in strict accordance with the quality policy and control of product quality.

In order to provide our partners with innovative and customized best vision solutions and ensure product quality above industry standards, we have established a thousand-level dust-free room, hundred-level workbench, automated production line, senior R&D engineers and cutting-edge manufacturing equipment to control quality and improve efficiency from the source. We provide professional and best camera module OEM solutions to our partners.
